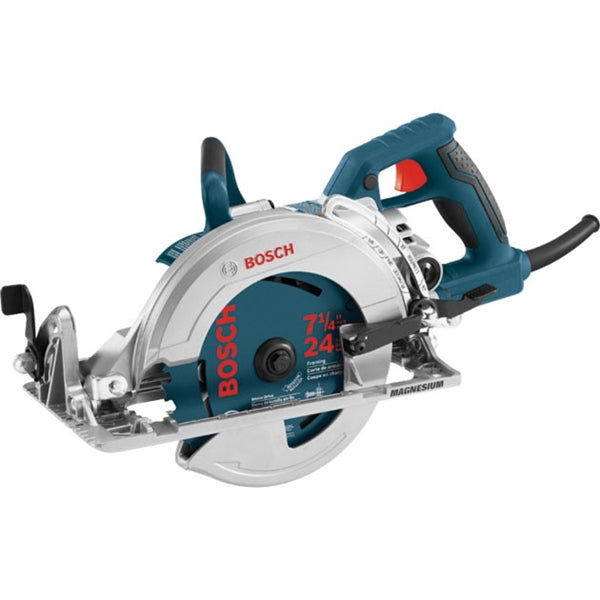

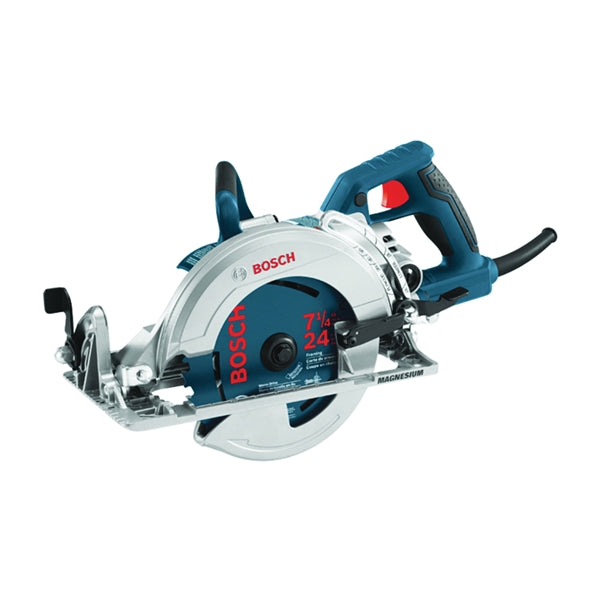

The CSW41 worm drive system features an enormous gearing ratio in a compact size. So if you want tremendous power in a manageable package, this is the saw you need. This model features sturdy magnesium housing and a die-cast magnesium footplate for true strength and a lifetime of reliable use. It also has easily serviceable brushes, large adjustment levers, a spindle lock and a built-in saw hook for easy storage between tasks. Top it all off with a soft grip handle for comfort, control and accuracy and you've got one exceptional piece of equipment.
Product Details
Manufacturer: ROBERT BOSCH TOOL CORPORATION
Manufacturer's Part Number: CSW41
Show me more Corded Circular Saws
Product Features
- Softgrip® handles for comfort and control
- Easy access spindle lock for easy blade changes
- Left side blade design for unmatched clarity of cut line
- Built-in saw hook allows convenient saw storage between cuts
- Accurate depth of cut system allows for quick accurate adjustment
- Large adjustment levers for fast, accurate bevel and depth adjustments
- Anti-snag lower guard provides smooth operation for small cut-off pieces
- Powerful 15 A motor provides power for a variety of cutting applications
- Featherboard multi-function wrench for blade and brush change, lever adjustments and blade diamond center knockout
- Lightweight magnesium motor housing and foot plate construction lighter weight saw reduces user fatigue for less down time
Product Specifications
| Amp Rating | 15 A |
| Arbor Size | 5/8 in |
| Bevel Capacity | 53 deg |
| Blade Diameter | 7 in |
| Blade Material | Carbide |
| Cord Length | 96 in |
| Cutting Depth | 1-15/16 in at 45 deg, 1-5/8 in at 50 deg, 2-3/8 in at 90 deg |
| Handle Type | Soft-Grip |
| Includes | CSW41 7-1/4 Magnesium Worm Drive, (1) Multi-Function Blade Wrench, (1) Carbide Blade, Built-in Saw Hook |
| Speed Rating | 5600 rpm |
