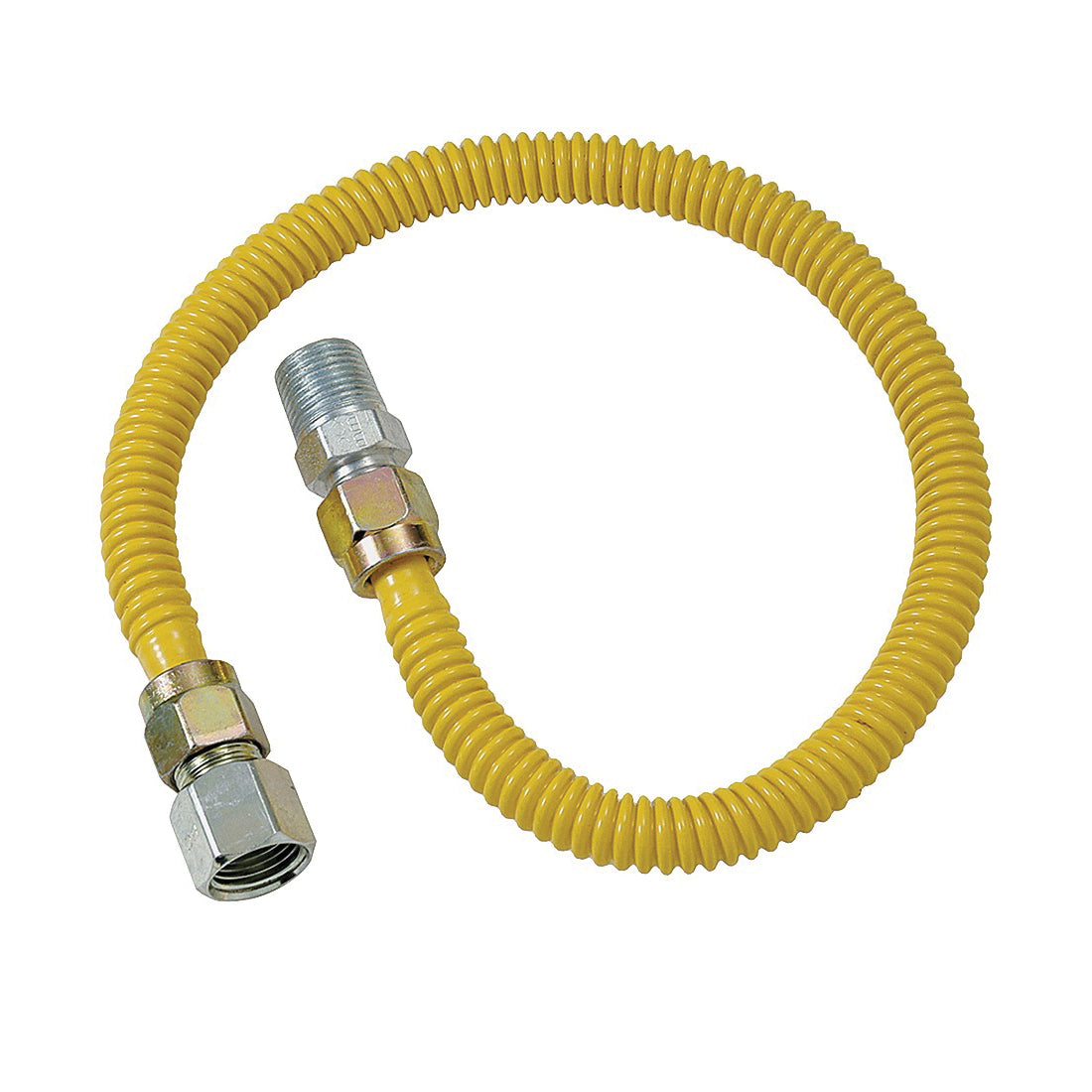

BrassCraft's ProCoat stainless steel gas connector is engineered with added safety in mind. The proprietary polymer coating is designed to withstand prolonged exposure to harsh household chemicals, UV rays and salt. ProCoat is applied to the corrugated stainless steel connector using advanced powder-coat technology. Unlike conventional dipped or sprayed coatings, the ProCoat coating is baked directly onto the connector surface at high temperatures to provide a uniform coating over the entire length of the connector. The coating is applied only after the connector has been 100% leak tested, prior to nut and fitting assembly. This process results in the most complete corrosion resistance available.
Product Details
Manufacturer: BRASS CRAFT
Manufacturer's Part Number: CSSD54-48P
Show me more Gas Connector Fittings
Product Features
- Gas connector is 100% leak tested
- Corrugated stainless steel with corrosion-resistant coating
- High tensile strength stainless steel is less susceptible to work hardening
- ProCoat coating corrosion-resistant to harsh chemicals as well as UV rays and salt

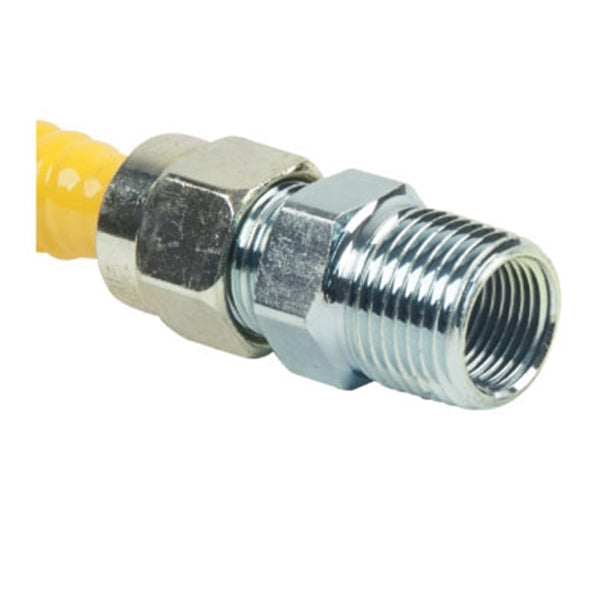

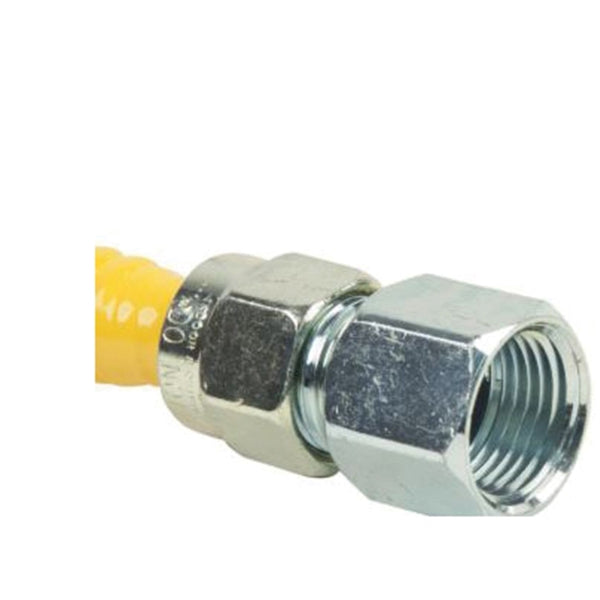

- Smooth, burnished connector ends seal with less torque, making installation easier
- Deep corrugations enhance flexibility and maneuverability of connector during installation
Product Specifications
Includes | 1/2 in FIP and 1/2 in MIP (Tapped 3/8 in FIP) Steel Fittings |
Length | 48 in |
Material | Stainless Steel |
Nominal Size | 1/2 x 1/2 in |
Operating Temperature | -40 to 150 deg F |
Pressure Rating | 0.5 psi |
Suitable for | Natural, Manufactured, Mixed and Liquefied Petroleum (LP or Propane) Gases and LP Gas-Air Mixtures |
Product Documents
Catalog | Click here to download |
Specification Sheet | Click here to download |
Instruction/Installation Manual | Click here to download |
