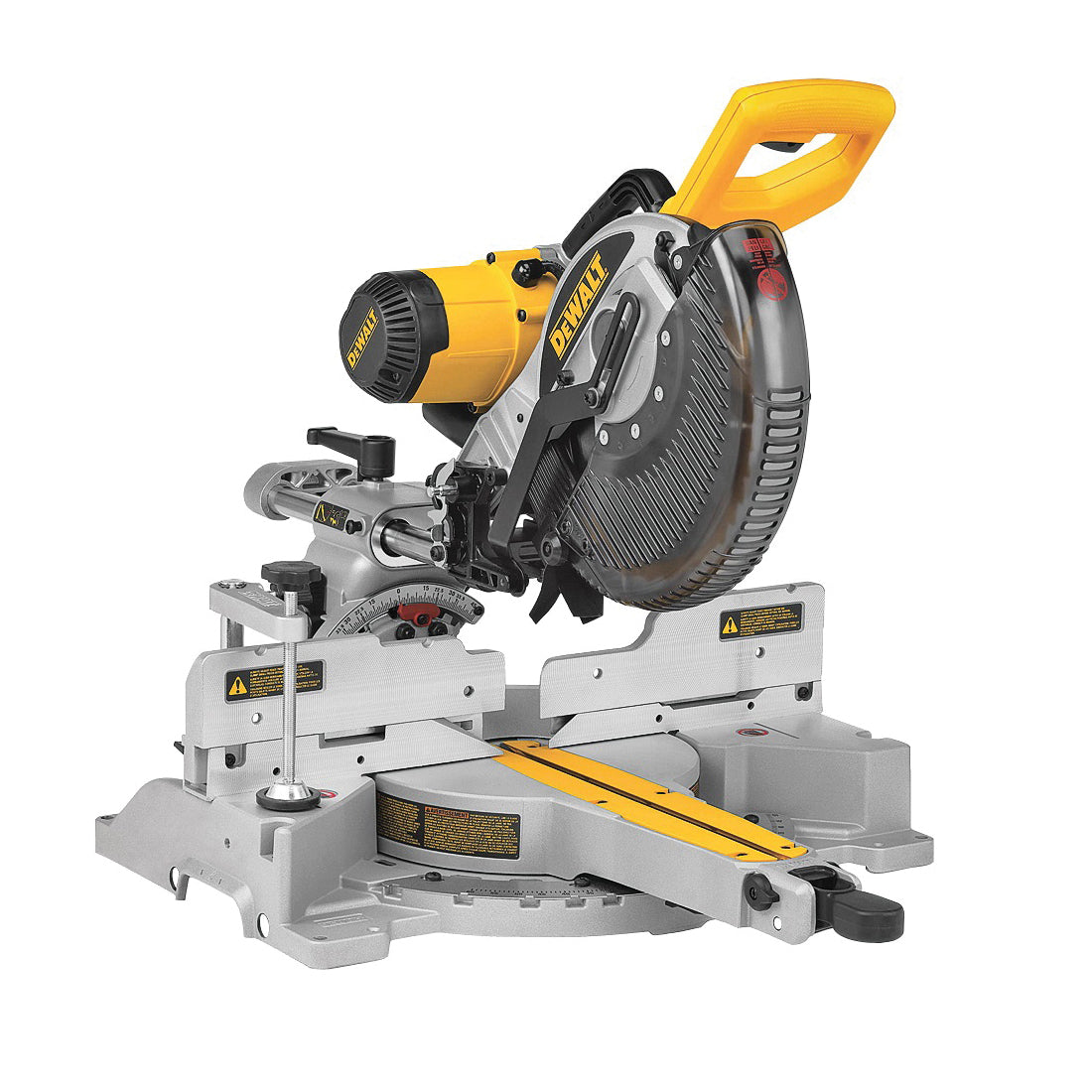

The DW717 10 in double-bevel sliding compound miter saw has an exclusive bevel detent system with seven positive stops to deliver fast accurate repeatable cuts. Finest in class cross cut capacity 12 in at 45 deg angle using back fence design. Features stainless steel miter detent plate and cam miter lock for accuracy, durability and easy adjustments.
Product Details
Manufacturer: STANLEY BLACK & DECKER
Manufacturer's Part Number: DW717
Show me more Power Miter Saws
Product Features
- Optimizes cutting accuracy
- Bevels 0 to 48 deg for increased cut capacity
- Horizontal handle improved ergonomics provides increased comfort
- Top in class cross cut-capacity 12 in at 45 deg angle using back-fence design
- Exclusive cross-cut stop positions cutting head for maximum vertical cut capacity
- Machined-base fence support maintains fence perpendicularity with blade for cutting accuracy
- Exclusive bevel detent system with seven positive stops delivers fast accurate repeatable cuts
- Tall sliding fence supports up to 6 in base molding to the left of blade and up to 3-1/2 in to the right of the blade
- Adjustable stainless steel miter detent plate with 11 positive stops improves productivity and ensures cutting accuracy
- Dual horizontal steel rails with innovative clamping mechanism and linear ball bearings deliver an accurate, durable and compact saw
Product Specifications
| Blade Diameter | 10 in |
| Cord Length | 8 ft |
| Cutting Capacity | 2 x 12 in at 45 deg, 2 x 12 in at 90 deg |
| Dimensions | 20.88 in L x 32 in W x 24 in H |
| Includes | Blade, Dust Bag |
| Material | Stainless Steel |
| Maximum Bevel Angle | 48 deg |
| Maximum Miter Angle | 60 deg |
| Number of Speeds | 1 |
| Power Source | 120 V, 15 A |
| Power Supply | 1675 W |
| Sound Level | 99 dBA |
| Speed Rating | 4000 rpm |
| Vibration Level | 2.3 m/sq-s |
