SKU: 0638346
Brand: Eaton Wiring Devices

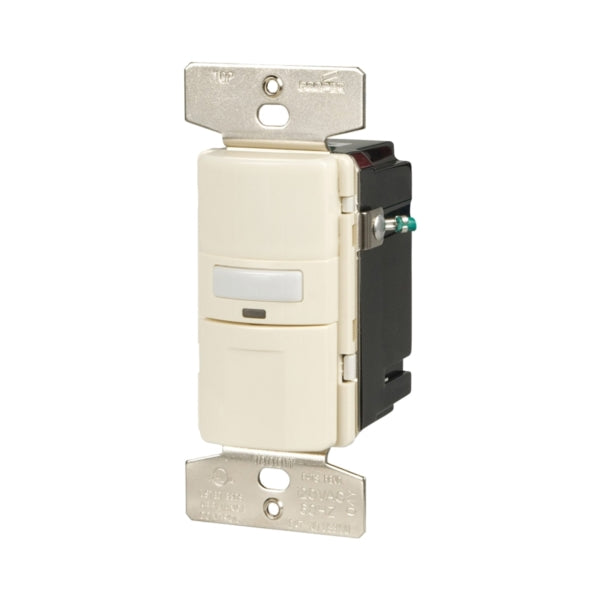

Occupancy/vacancy sensor switches use advanced Passive Infrared (PIR) technology to sense the movement of heat-emitting bodies. Occupancy sensors provide auto-On/Off or manual-On/auto-Off operation while vacancy sensors provide Manual-On/Auto-Off operation only (CA Title 24 Compliant). The sensors automatically turn lights off after a space becomes vacant and a preset time delay elapses. Both versions provide 1-pole (single-location) and 3-way (multi-location) wiring and work with all lighting load types (INC, MLV, ELV, FLR, CFL, LED). A selectable and dimmable LED nightlight is provided. All sensors are compatible with any decorator-style or decorator screwless wallplate.
Product Details
Manufacturer: EATON
Manufacturer's Part Number: OS310U-LA-K
Show me more Motion Sensor Controls
| Color | Light Almond |
| Connection Type | Wire |
| Current Rating | 8.3 A |
| Frequency Rating | 60 Hz |
| Includes | Mid-Size Decorator Wallplate |
| Lamp Type | CFL, Fluorescent, Halogen, Incandescent, LED |
| Material | Polycarbonate |
| Mounting Type | Wall |
| Number of Poles | 1 |
| Sensing Angle | 180 deg |
| Sensing Range | 1000 sq-ft |
| Sensor Type | Motion |
| Temperature Rating | 0 to 40 deg C |
| Timer Range | 30 s to 30 min |
| Voltage Rating | 120 V |
| Wattage Rating | 600 W |
| Catalog | Click here to download |
| Specification Sheet | Click here to download |
| Instruction/Installation Manual | Click here to download |
