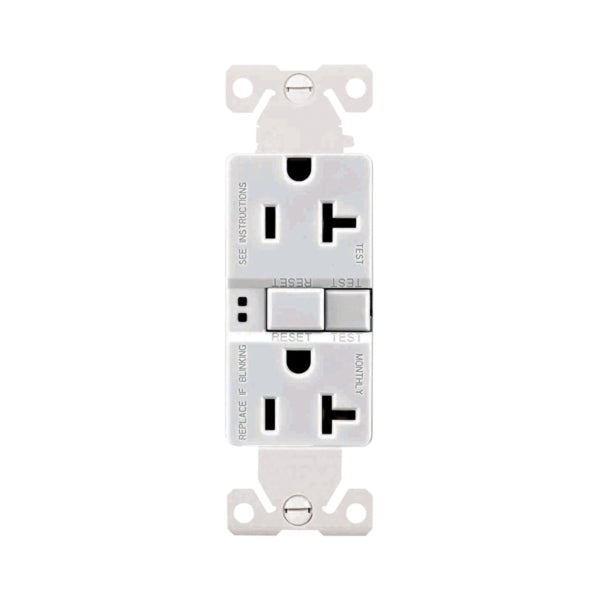

Eaton Wiring Devices SGF20W Duplex GFCI Receptacle, 2-Pole, 20 A, 125 V, Back, Side Wiring, NEMA: 5-20R, White

Eaton Wiring Devices SGF20W Duplex GFCI Receptacle, 2-Pole, 20 A, 125 V, Back, Side Wiring, NEMA: 5-20R, White

SKU: 7335821

Brand: Eaton Wiring Devices

Regular price
$18.99
Sale price
$18.99
Regular price
$0.00
Sold out
Unit price
per

Eaton's Arrow Hart line of GFCI receptacles ensure electrical shock protection with periodical automatic testing. If no GFCI protection is present, the receptacle will render itself inoperable and a red indicator light will glow notifying the user there is no power and the device must be replaced. GFCIs provide state-of-the-art, dependable electrical shock protection. In addition to being tested to the highest standards to help ensure safety, Arrow Hart GFCIs will deny power and prevent re-setting if the device is no longer able to provide safe, protected power.

Product Details

Manufacturer: EATON

Manufacturer's Part Number: SGF20W

Show me more Duplex Outlets

Product Features

  • Line-load miswiring protection
  • Tri-combo head terminal and mounting screws
  • Longer, wider strap provides 40% more contact area to wallboard
  • Performs periodic self-tests to ensure integrity of GFCI protection
  • Line side terminals are backed out and staked for fast installation
  • Test and reset buttons are color matched to provide great aesthetics
  • Rugged construction provides unsurpassed chemical and impact resistance
  • Horizontal test/reset button alignment provides larger unobstructed area
  • Visual trip indicator light gives quick notification of a tripped or "end of life" condition
  • Ground termination with back wire clamp provides secure wiring and reduces installation time
  • When downstream receptacles are wired from load side, a 20 A feed-through rating offers full protection
  • Tapered back wire openings handle multiple wire sizes and types for applications up to #10 AWG solid or stranded wire
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used

Product Specifications

Body Material Polypropylene
Color White
Contact Material Brass
Current Rating 20 A
Dimensions 4.2 in L x 1.68 in W x 1.27 in D
Frequency Rating 60 Hz
Includes Wallplate
Material Polypropylene
Mounting Type Wall
NEMA Configuration 5-20R
Number of Poles 2
Number of Wires 3
Operating Temperature -35 to 66 deg C
Strap Material Steel
Voltage Rating 125 V
Wire Size 14 to 10 AWG
Wiring Type Back, Side
