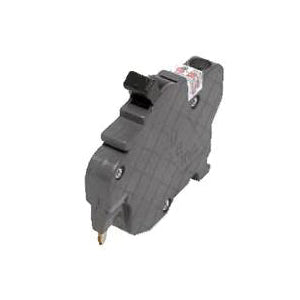

For Federal Pacific Load Centers. HACR rated. 120/240 VAC, 10,000 AIC.
Product Details
Manufacturer: CONNECTICUT ELECTRIC
Manufacturer's Part Number: UBIF030N
Show me more Circuit Breakers
Product Specifications
| Current Rating | 30 A |
| Dimensions | 3.36 in L x 0.5 in W x 2.55 H |
| Interrupt Rating | 10 kA |
| Mounting Type | Plug |
| Number of Phases | 1 |
| Number of Poles | 1 |
| Operating Frequency | 50/60 Hz |
| Suitable for | Federal Pacific Electric load centers |
| Terminal Type | Lug |
| Trip Type | Standard |
| Type | Type NC |
| Voltage Rating | 120 V |
| Wire Size | 14 to 4 AWG |
Product Documents
| Catalog | Click here to download |
| Specification Sheet | Click here to download |
