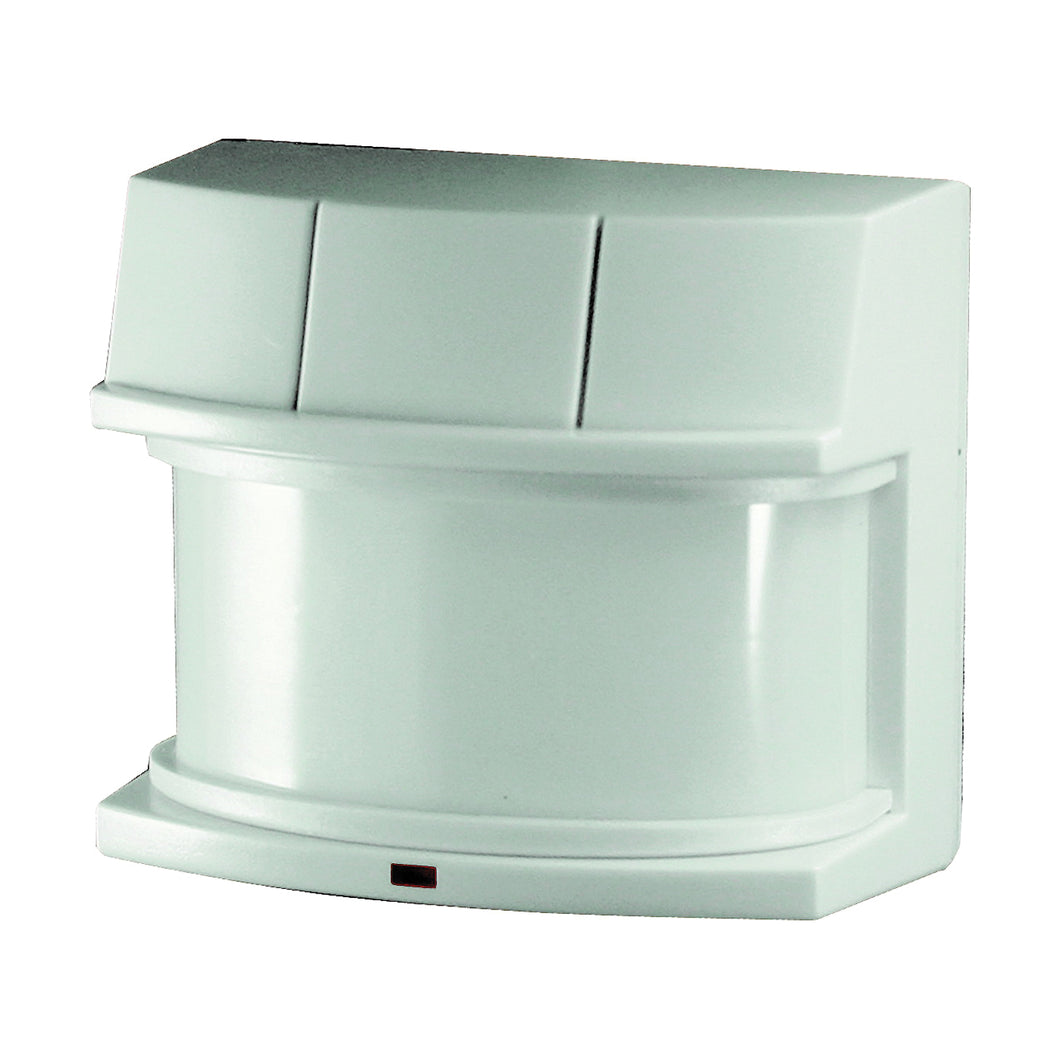

Replacement motion sensor for security lights, requires 120 VAC, 60 Hz. Pulse Count technology reduces false sensing from wind and rain. 2 level lighting, low-level accent light adjustable timer settings include off, 3 hrs, 6 hrs and dusk to dawn and full bright when motion is detected. Automatically turns lighting off with time delay of 1, 5 or 10 mins. Automatic photocell deactivates unit in daylight to save energy. Manual override turns light on or off when wired with a wall switch. Allows light to stay on continuously all night when needed. Range can be adjusted from 15 ft up to 100 ft, varies with surrounding temperature. Sensing angle of 240 deg.
Product Details
Manufacturer: HEATHCO
Manufacturer's Part Number: HZ-5316-WH
Show me more Specialty Lighting Accessories
Product Features
- Up to 100 ft detection range
- 240 deg motion replacement sensor
Product Specifications
| Color | White |
| Dimensions | 3.4 in W x 3.2 in D x 4 in H |
| Material | Plastic |
| Specifications | 120 VAC, 60 Hz, 100 ft Sensing Range, 240 deg Sensing Angle, 1/5/20 Min Time Delay, Hardwired Power Type, 0.45 lb Weight |
| Suitable for | HZ-5105-WH, HZ-5311-BZ, HZ-5318-BZ, HZ-5318-WH, HZ-5512-BZ, HZ-5512-WH, HZ-5512-WH, HZ-5597-BZ and HZ-5597-WH Motion Sensor Lights |
Product Documents
| Instruction/Installation Manual | Click here to download |
