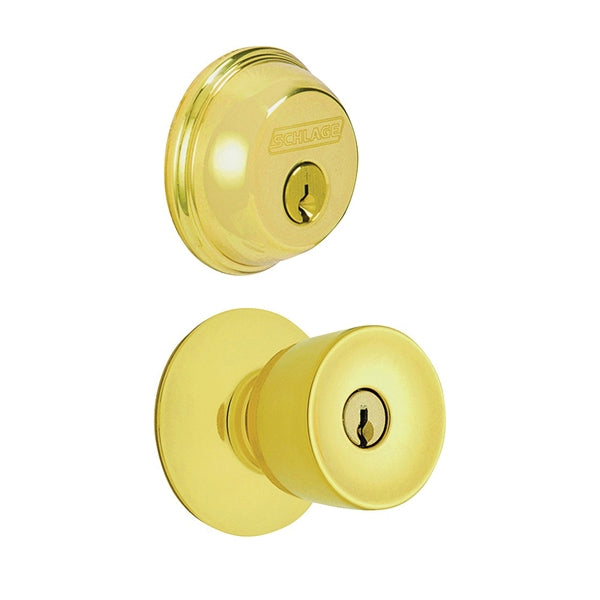

For heavy-duty residential and light-duty commercial doors. Includes one #360 single cylinder deadbolt and one No. F51 Bell entry lockset, both deadbolt and entry are keyed alike. Deadbolt has a 7/8 in housing and 1 in throw with concealed hardened steel roller to prevent cutting or sawing. Entry lockset of solid wrought brass with pressure cast zinc tubular housing. Triple Option Universal latch fits any door, 2-3/8 in or 2-3/4 in backset, square corner, round corner or drive in preps. Lockset meets ANSI A156.2 Grade 2, deadbolt exceeds ANSI A156.5, 1992 Grade 2 with Grade 1 security features. Secure Key feature allows you to re-key the lock without ever removing it from the door.
Product Details
Manufacturer: SCHLAGE HARDWARE
Manufacturer's Part Number:
Show me more Combination Locksets
Product Features
- Turn button locking
- Bolt deadlocks when fully thrown
- Deadbolt thrown or retracted by key from outside or by inside turn unit
Product Specifications
| Backset Size | 2-3/8 x 2-3/4 in |
| Door Handing | Left, Right |
| Door Thickness | 1-3/8 to 1-3/4 in |
| Finish | Brass |
| Includes | (1) #360 Single-Cylinder Deadbolt, (1) #F51 Bell Entry Lockset |
| Key Type | Keyed Alike |
| Keyway Type | K4 |
| Material | Steel |
| Number of Cylinders | 1 |
| Security Grade | 2 |
| Strike Type | Full Lip Radius Corner |
Product Documents
| Catalog | Click here to download |
