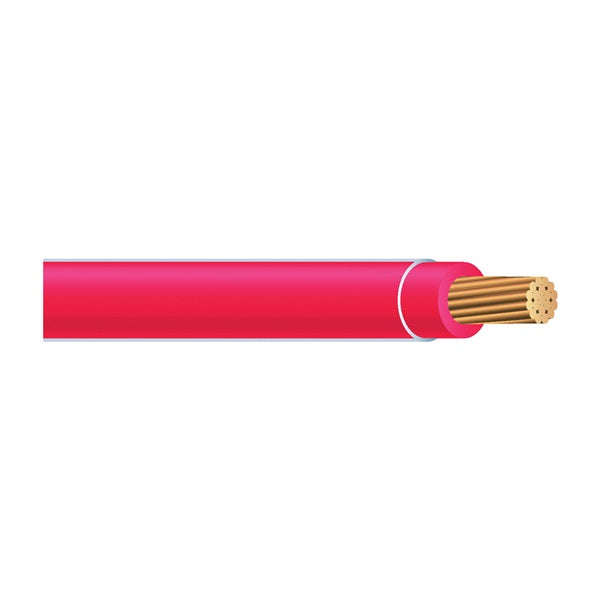

Southwire® SIMpull THHN® copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 V. SIMpull THHN® copper conductors are designed to be installed without application of a pulling lubricant.
Product Details
Manufacturer: SOUTHWIRE
Manufacturer's Part Number: 22966652
Show me more Building Wire
Product Specifications
| Conductor Insulation | PVC |
| Conductor Material | Copper |
| Current Rating | 20 A |
| Length | 100 ft |
| Operating Temperature | 90 deg C |
| Sheath Color | Red |
| Sheath Diameter | 128 mil |
| Sheath Material | Nylon |
| Strands per Conductor | 19 |
| Voltage Rating | 600 V |
| Wire Size | 12 AWG |
Product Documents
| Specification Sheet | Click here to download |
