SKU: 6122238
Brand: GE Industrial Solutions

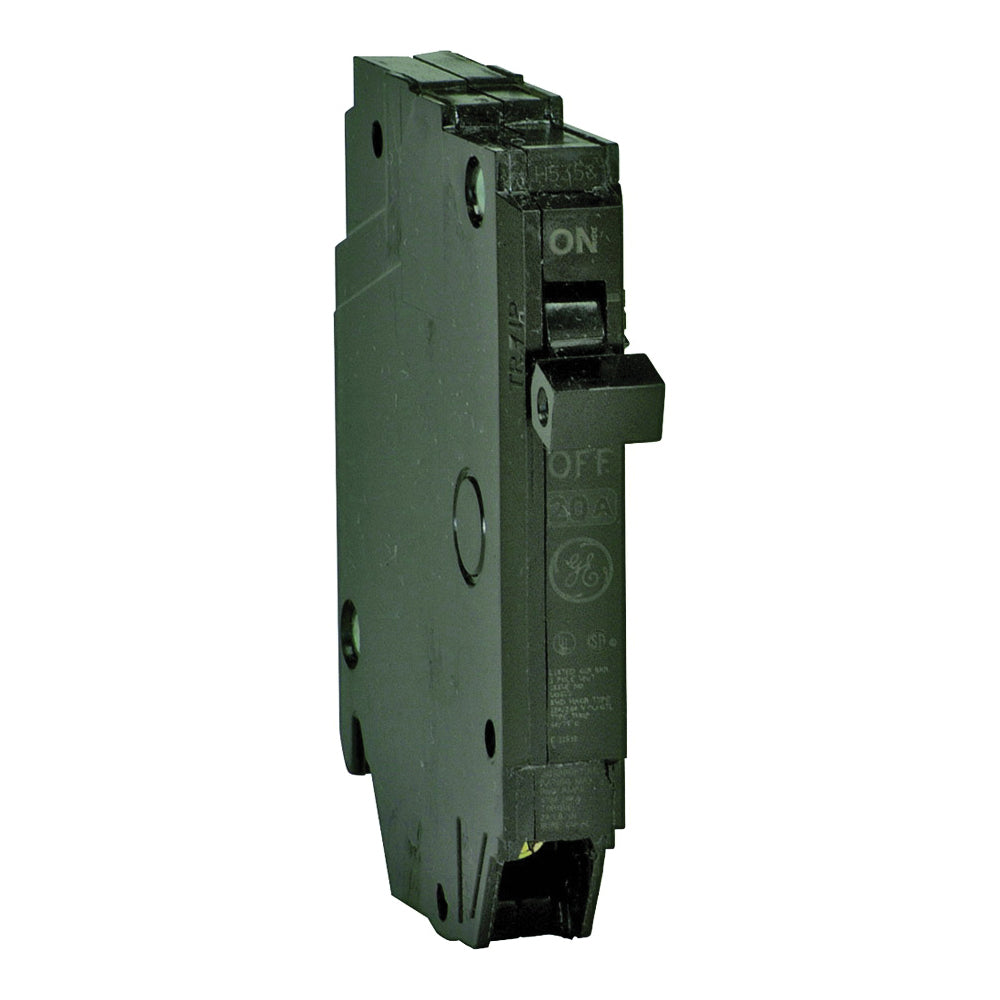

Copper-to-copper connections, calibrated for optimum trip performance, heat-resistant thermoset cases and covers, cemented calibration screw. Nearly identical to Type THQL with the same design and performance, yet only taking up 1/2 the space, 1/2 in per pole. UL listed, HACR rated. 15 and 20 A SWD, switching duty rated, suitable for 120 V fluorescent lighting loads. 15 to 25 A #14 to 8 Cu or #12 to 8 Al AWG wire, 30 to 50 A #8 to 4 Cu or #8 to 2 Al AWG wire. 3-9/32 in H x 1/2 in W x 2-3/8 in D. 120/240 V, 10,000 AIR.
Product Details
Manufacturer: ABB
Manufacturer's Part Number: THQP150
Show me more Circuit Breakers
| Actuator Type | Toggle |
| Current Rating | 30 A |
| Dimensions | 3.28 in L x 0.5 in W x 2.58 in H |
| Frame Type | Q-Line |
| Interrupt Rating | 10 kA |
| Mounting Type | Plug |
| Number of Phases | 1 |
| Number of Poles | 1 |
| Operating Frequency | 50/60 Hz |
| Operating Temperature | -50 to 105 deg C |
| Suitable for | Reverse Feed |
| Terminal Type | Lug |
| Trip Type | Non-Interchangeable |
| Type | Portable, SEOOW |
| Voltage Rating | 120/240 V |
| Wire Size | 10 AWG |
| Catalog | Click here to download |
| Line Drawing | Click here to download |
| Specification Sheet | Click here to download |
