Whitinsville
SKU: 6730311
Brand: Eaton

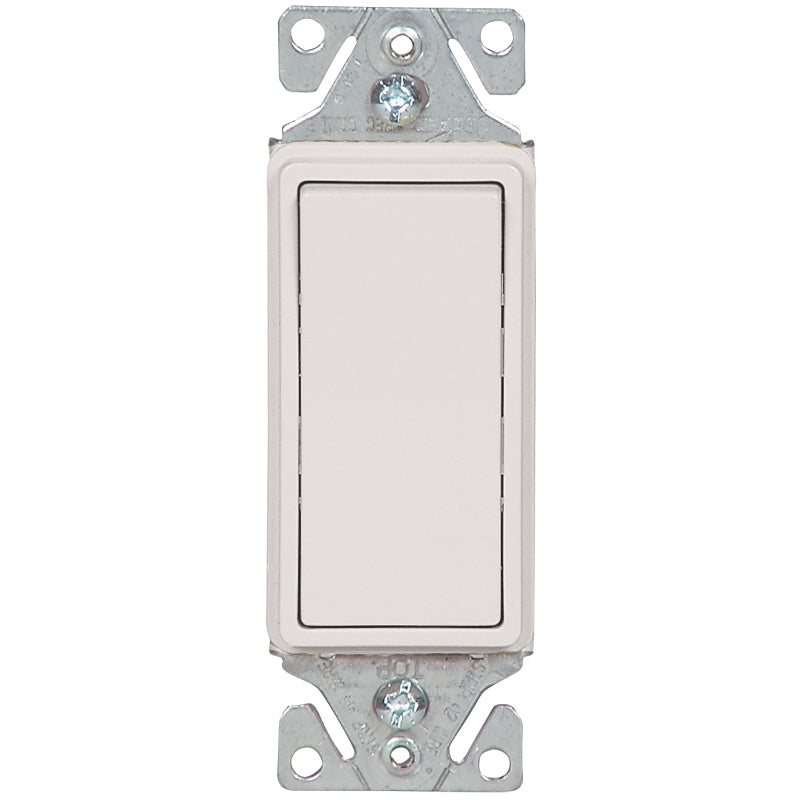

Decorator switches feature ultrasonic welding and integrated construction of the strap and body provide superior integrity. Back wire clamps on the side terminals provide for easy installation of #12 and #14 wire. Re-designed paddle for easier actuation and quiet operation. Thermoplastic rocker, top and back body are virtually unbreakable, promising years of durable performance. Tri-combo screws accept Slotted, Phillips and Robertson head tools for installation flexibility. Long, broad mounting strap virtually eliminates floating installations. Patented built-in wire stripper for #12 and #14 wire to speed installation. Stippled ground screw terminal standard. 120/277 VAC rating ideal for fluorescent lighting fixtures typical in commercial applications. Push-in terminals accept #14 solid wire.
Product Details
Manufacturer: Eaton
Manufacturer's Part Number: 7503W-BOX
Show me more Rocker Switches
| Voltage Rating | 120/277 V |
| Current Rating | 15 A |
| Number of Phases | 1 |
| Number of Poles | 3 |
| Contact Configuration | 3-Way |
| Terminal Type | Push Wire |
| Temperature Rating | -20 to 60 deg C |
| Mounting Type | Flush |
| Housing Material | Thermoplastic |
| Color | White |
| Dimensions | 4.19 in L x 1.44 in W x 0.97 in D |
