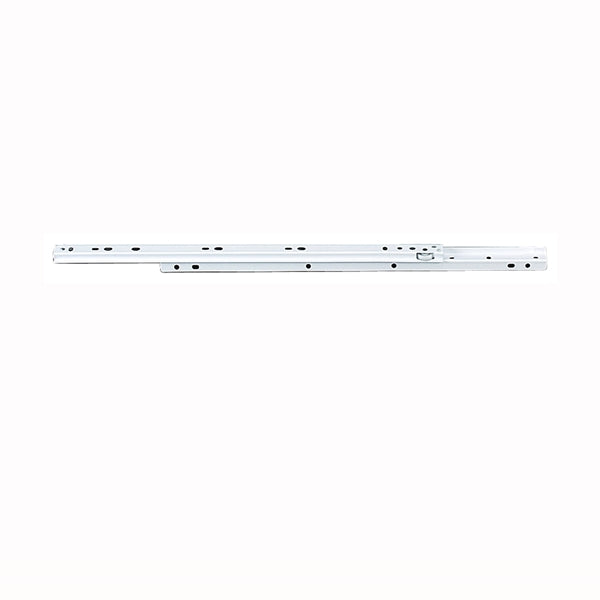

Knape & Vogt 1284P WH 550 Drawer Slide, 75 lb, 550 mm L Rail, 1/2 in W Rail

Name: Knape & Vogt 1284P WH 550 Drawer Slide, 75 lb, 550 mm L Rail, 1/2 in W Rail
Brand: Knape & Vogt
SKU: 6210918
Price: 9.99 USD
Availability: OutOfStock

SKU: 6210918

Brand: Knape & Vogt

$9.99Sold Out

Medium-duty slide designed for kitchen cabinet and bathroom vanity applications. Adaptable to frame mounting and 32 mm mounting system. Solid stud and captive roller reduces side play. Positive stop, lift-out disconnect, stay-closed design. Adjustment slots on both the drawer member and the cabinet member ease installation. Screws fasten to either side or bottom of drawer. Positive lock-out feature is ideal for pull out work surfaces. Height of 1-9/32 in. Required clearance of 1/2 in plus 1/32 in minus 0 each side. 1 in between overall drawer side height and cabinet opening height required for drawer insertion and removal. Packaged with screws and installation instructions. Maximum drawer width 18 in.

Product Details

Manufacturer: KNAPE & VOGT MFG

Manufacturer's Part Number:

Show me more Drawer Slides

Stay close design

It provides positive stop

Hold in/anti-rebound open/close features

Recommended for drawers up to 18 in wide

Epoxy-coated drawer slide features ball bearing rollers and a lift-out release allowing for easy drawer removal

Bearing Type	Roller
Color	White
Includes	Screws
Rail Length	550 mm
Rail Width	1/2 in
Weight Capacity	75 lb

Catalog	Click here to download
Specification Sheet	Click here to download
Instruction/Installation Manual	Click here to download
