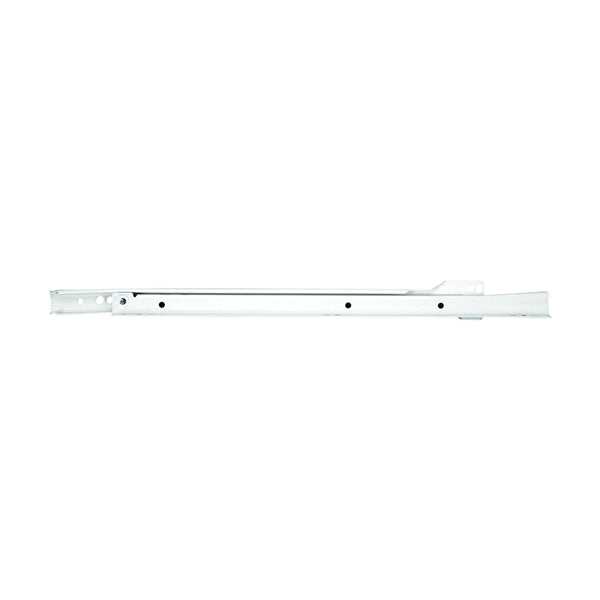

Knape & Vogt 1805H WH 450 Drawer Slide, 75 lb, 450 mm L Rail, 12.5 mm W Rail

Name: Knape & Vogt 1805H WH 450 Drawer Slide, 75 lb, 450 mm L Rail, 12.5 mm W Rail
Brand: Knape & Vogt
SKU: 2340313
Price: 9.99 USD
Availability: InStock

SKU: 2340313

Brand: Knape & Vogt

$9.99

Pickup currently unavailable at Dennis

Specially designed for use in kitchen cabinet, commercial millwork, home office and RTA furniture applications. Adaptable to face frame or 32 mm mounting. Single captive roller limits side play for improved lateral stability. Positive double out-stop. Positive in-stop. Lift-out disconnect. Four way adjustment slots. Positive lock-open position. Cabinet member side mounts. Additional rear mounting socket available for face frame applications. Drawer member fastens to either side or bottom of drawer. Height 1.4 in. Required clearance, side of 1/2 in plus 1/32 in minus 0 each side. Top of 1 in required for drawer lift out. Bottom: None drawer can rest on cabinet. Packed with screws and installation instructions. Maximum drawer width 18 in.

Product Details

Manufacturer: KNAPE & VOGT MFG

Manufacturer's Part Number:

Show me more Drawer Slides

Recommended for drawers up to 18 in wide

Hold in/anti-rebound open/close features

Single captive roller limits side play for improved lateral stability

32 mm hole pattern and lift-out disconnect for easy removal from the cabinet

3/4 in extension epoxy-coated roller slide features a self-close design to hold drawer in a closed position

The 1805 self-close euro drawer slide is designed for applications that require a value priced slide that is easy to install and replace

Bearing Type	Roller
Color	White
Includes	#6 x 7/16 in Phillips Flat Head Screw
Rail Length	450 mm
Rail Width	12.5 mm
Weight Capacity	75 lb

Catalog	Click here to download
Instruction/Installation Manual	Click here to download
