SKU: 6942957
Brand: Siemens

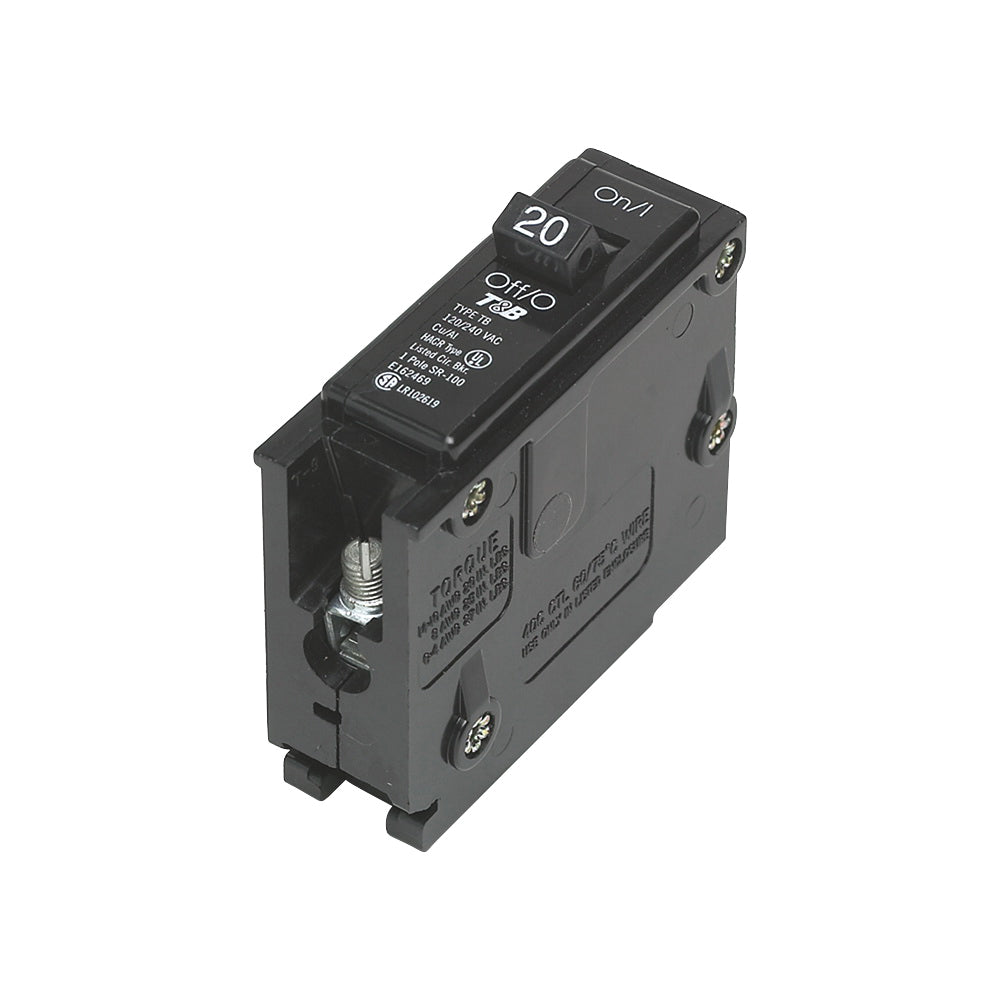

Non-interchangeable trip. 120 VAC, 10,000 AIR. Will replace American Switch, Westinghouse Type BR, Bryant, Challenger, Sylvania, Crouse-Hinds, Murray, Frank Adams, General Electric (Full size only), General Switch, I-TE, Gould, Montgomery Ward and Sears. UL listed, HACR rated. 15 and 20 A UL listed for frequent switching applications, 120 VAC fluorescent lighting. 1 in per pole.
Product Details
Manufacturer: SIEMENS
Manufacturer's Part Number: Q115
Show me more Circuit Breakers
| Actuator Type | Magnetic, Thermal |
| Current Rating | 15 A |
| Dimensions | 3 in L x 1 in W x 3 in H |
| Frame Type | QP |
| Interrupt Rating | 10 kA |
| Mounting Type | Plug |
| Number of Phases | 1 |
| Number of Poles | 1 |
| Operating Frequency | 50/60 Hz |
| Operating Temperature | 40 deg C |
| Terminal Type | Lug |
| Trip Type | Fixed |
| Type | Mini |
| Voltage Rating | 120/240 V |
| Wire Size | 14 to 8 AWG |
| Catalog | Click here to download |
| Specification Sheet | Click here to download |
