SKU: 6943120
Brand: SIEMENS

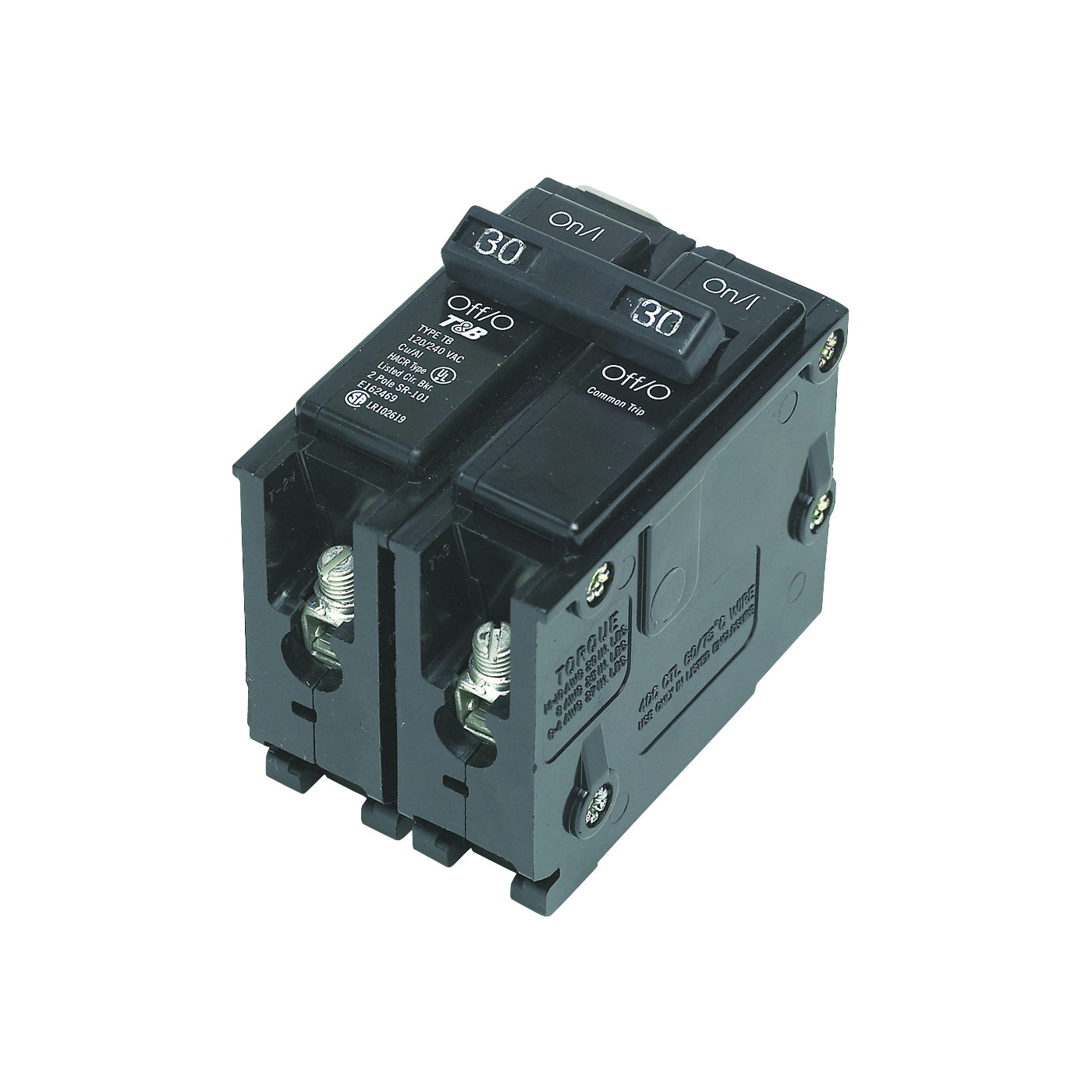

Molded case with non-interchangeable trip. Will replace American Switch, Westinghouse Type BR, Bryant, Challenger, Sylvania, Crouse-Hinds, Murray, Frank Adams, General Electric (full size only), General Switch, I-T-E, Gould, Montgomery Ward and Sears. UL listed. HACR rated. 120/240 VAC; 10,000 AIR. 1 in per pole (2 in total).
Product Details
Manufacturer: SIEMENS
Manufacturer's Part Number: Q250
Show me more Circuit Breakers
| Type | Mini |
| Voltage Rating | 120/240 V |
| Current Rating | 50 A |
| Operating Frequency | 50/60 Hz |
| Number of Phases | 1 |
| Number of Poles | 2 |
| Interrupt Rating | 10 kA |
| Frame Type | QP |
| Actuator Type | Magnetic, Thermal |
| Trip Type | Fixed |
| Wire Size | 8 to 6 AWG |
| Terminal Type | Lug |
| Mounting Type | Plug |
| Dimensions | 3 in L x 3 in W x 2 in H |
| Operating Temperature | 40 deg C |
| Catalog | Click here to download |
| Specification Sheet | Click here to download |
