Whitinsville
SKU: 6473292
Brand: Square D

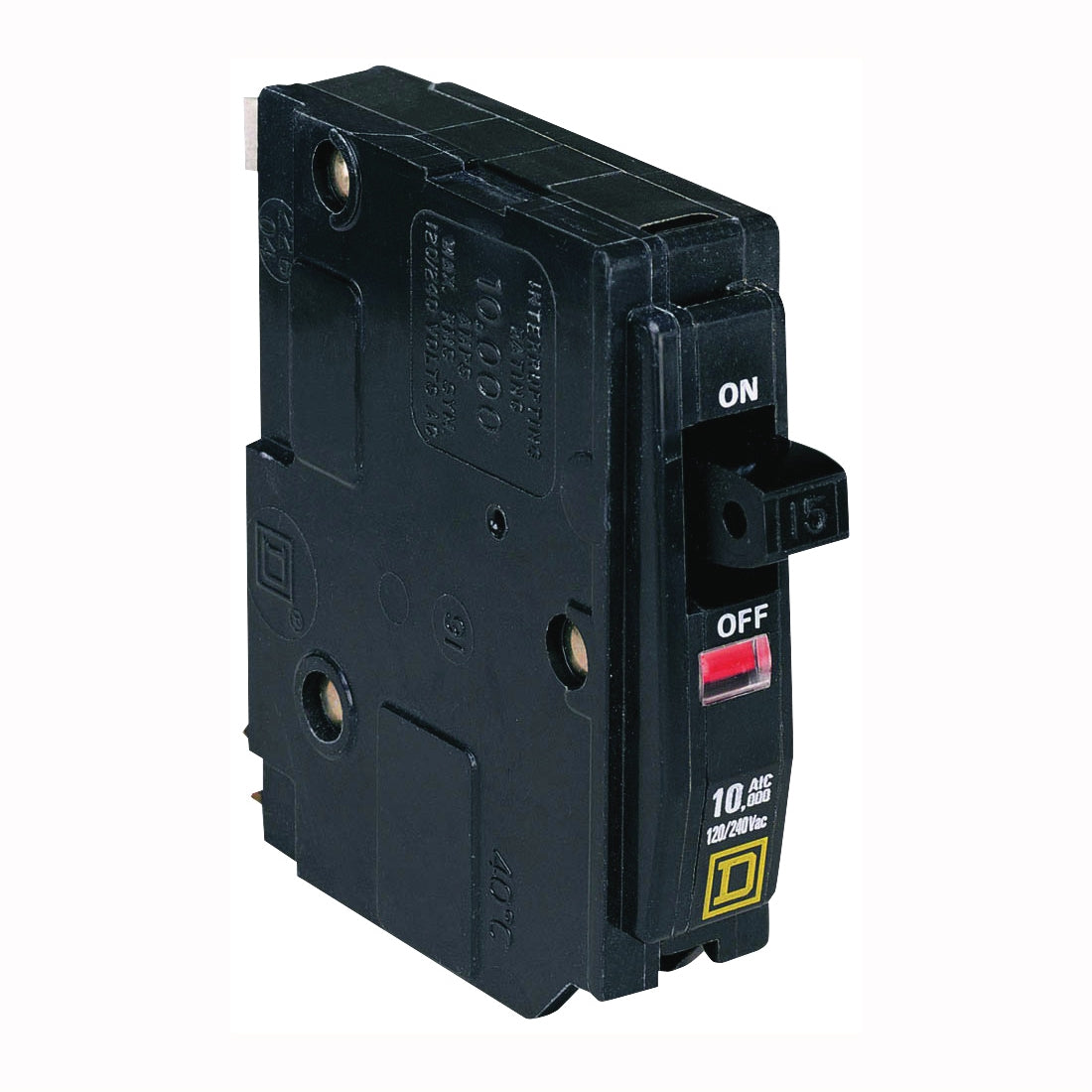

All QO circuit breakers are equipped with the Visi-Trip™ indicator. When a Visi-Trip circuit breaker trips, the handle snaps to a midpoint position between "OFF" and "ON" and a highly visible, red indicator easily identifies the tripped breaker. This enables you to easily distinguish which breaker has tripped in a load center that may contain up to 60 different circuit breakers. QO circuit breakers have features no other manufacturer can offer. They come in many different sizes and can meet the needs of virtually every function in your home or business. These types of quality, industry exclusive products keep the Square D brand ahead of the competition and are builders' and electrical contractors' first choice in electrical protection.
Product Details
Manufacturer: SCHNEIDER ELECTRIC
Manufacturer's Part Number: QO130CP
Show me more Circuit Breakers
| Current Rating | 30 A |
| Dimensions | 0.75 in W x 2.91 in D x 3 in H |
| Interrupt Rating | 5, 10 kA |
| Mounting Type | Plug |
| Number of Phases | 1 |
| Number of Poles | 1 |
| Number of Spaces | 1 |
| Operating Frequency | 50/60 Hz |
| Operating Temperature | 104 deg F |
| Terminal Type | Pressure Contact |
| Trip Type | Fixed |
| Type | Mini |
| Voltage Rating | 120/240 VAC, 48 VDC |
| Wire Size | 14 to 18 AWG |
| Catalog | Click here to download |
| Specification Sheet | Click here to download |
