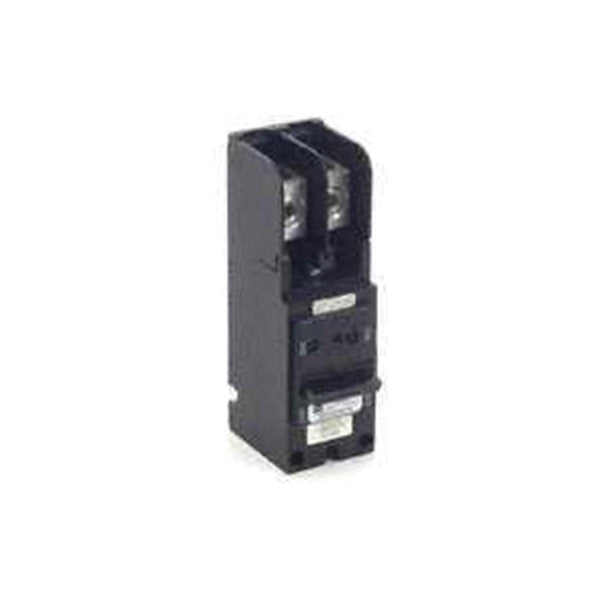

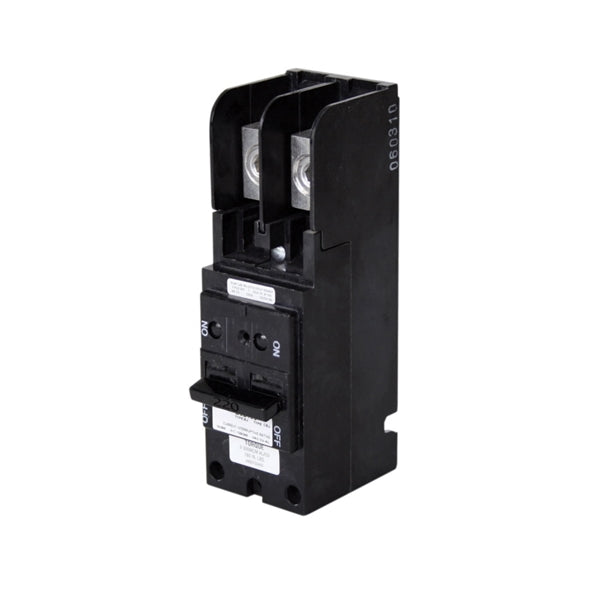

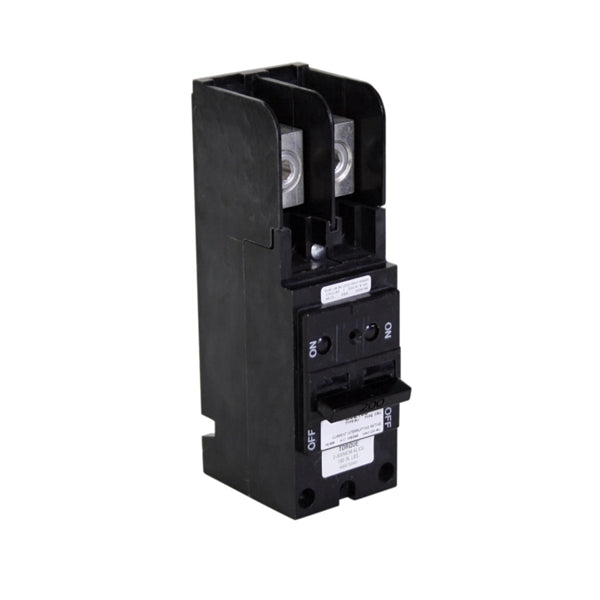

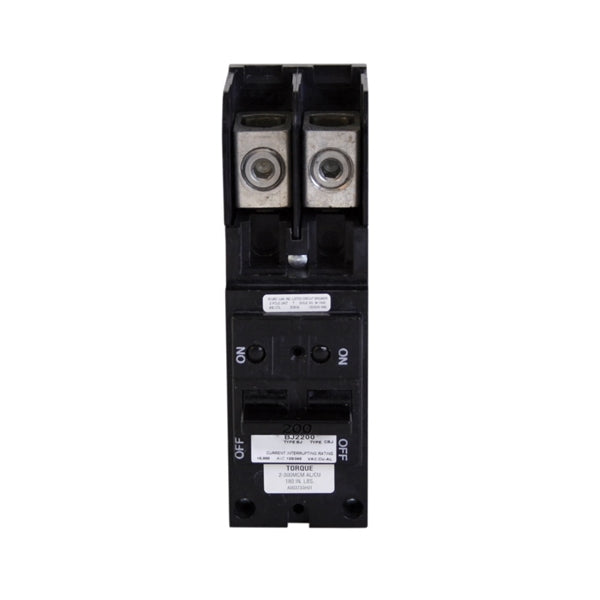

SKU: 6476667
Brand: Cutler-Hammer
For use in single and 3-phase Type BR load centers 150 A and up. Requires two 1 in pole spaces on left side and two 1 in pole spaces on right side. No BJHDS hold down kit, necessary for using as a main or back feed device, sold separately. #2 to 300 kcmil wire range. 120/240 VAC, 10,000 AIC.
Product Details
Manufacturer: EATON
Manufacturer's Part Number: BJ2200
Show me more Circuit Breakers
| Actuator Type | Magnetic, Thermal |
| Current Rating | 200 A |
| Dimensions | 6-1/2 in L x 3-1/2 in W x 2-1/2 in H |
| Interrupt Rating | 10, 22 kA |
| Mounting Type | Plug |
| Number of Phases | 1 |
| Number of Poles | 2 |
| Operating Frequency | 50/60 Hz |
| Operating Temperature | 60 to 75 deg C |
| Trip Type | Common |
| Type | Type BJ |
| Voltage Rating | 120/240 V |
| Wire Size | 2 AWG |
