Whitinsville
SKU: 6860803
Brand: Cutler-Hammer

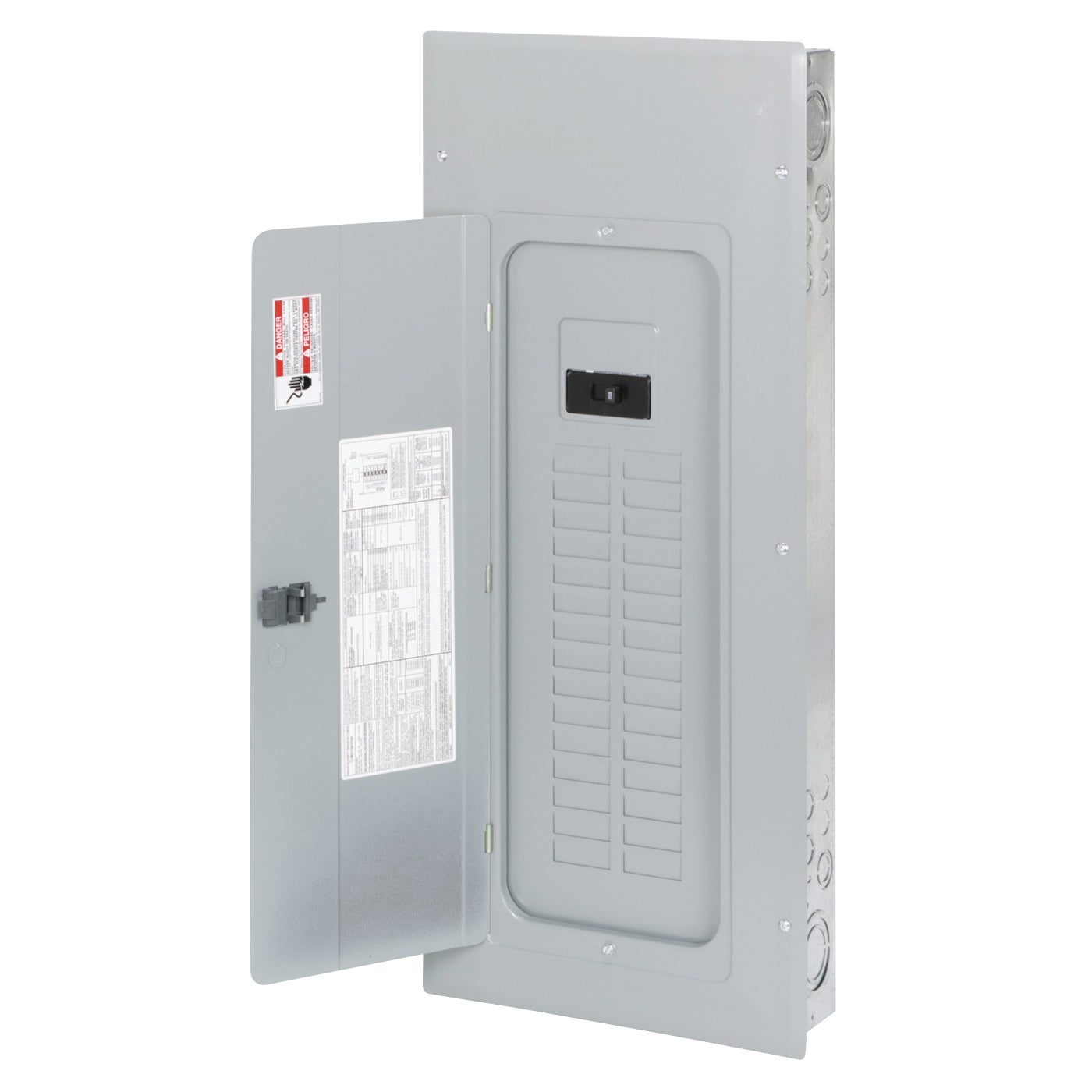

Galvanized steel enclosure. Single phase, 3-wire, insulated/bondable split neutral, 30 (1 in) spaces, 40 poles, 120/240 V. Main breaker type BW at 25,000 AIC. Ground bar kit (necessary for sub-feeding) sold separately. Tin-plated aluminum bus bar. Twin neutral with non removable cross bus. When bonded, unused neutral connections may be used for equipment ground protectors in service entrance application. #2 - 300 kcmil wire range. Electrostatic powder coat, baked urethane painted. Rotates 180 deg for bottom feed; orientation of main breaker handle consistent with NEC 240-81 requirements because it operates horizontally. G1 box - 14-5/16 in W x 34-1/8 in H x 3-7/8 in D. UL listed file E52977.
Product Details
Manufacturer: EATON
Manufacturer's Part Number: BR3040B200
Show me more Main Breaker Load Centers
| Bus Bar Material | Aluminum |
| Cable Size | 2/0 AWG |
| Current Rating | 200 A |
| Enclosure Type | NEMA 3R |
| Includes | Cover, BREQS125 Hold-Down Screw |
| Interrupt Rating | 10 kA |
| Number of Phases | 1 |
| Number of Poles | 40 |
| Number of Spaces | 30 |
| Temperature Rating | 60 to 75 deg C |
| Voltage Rating | 120/240 V |
| Catalog | Click here to download |
| Line Drawing | Click here to download |
| Specification Sheet | Click here to download |
| Instruction/Installation Manual | Click here to download |
