SKU: 1523935
Brand: Schneider Electric

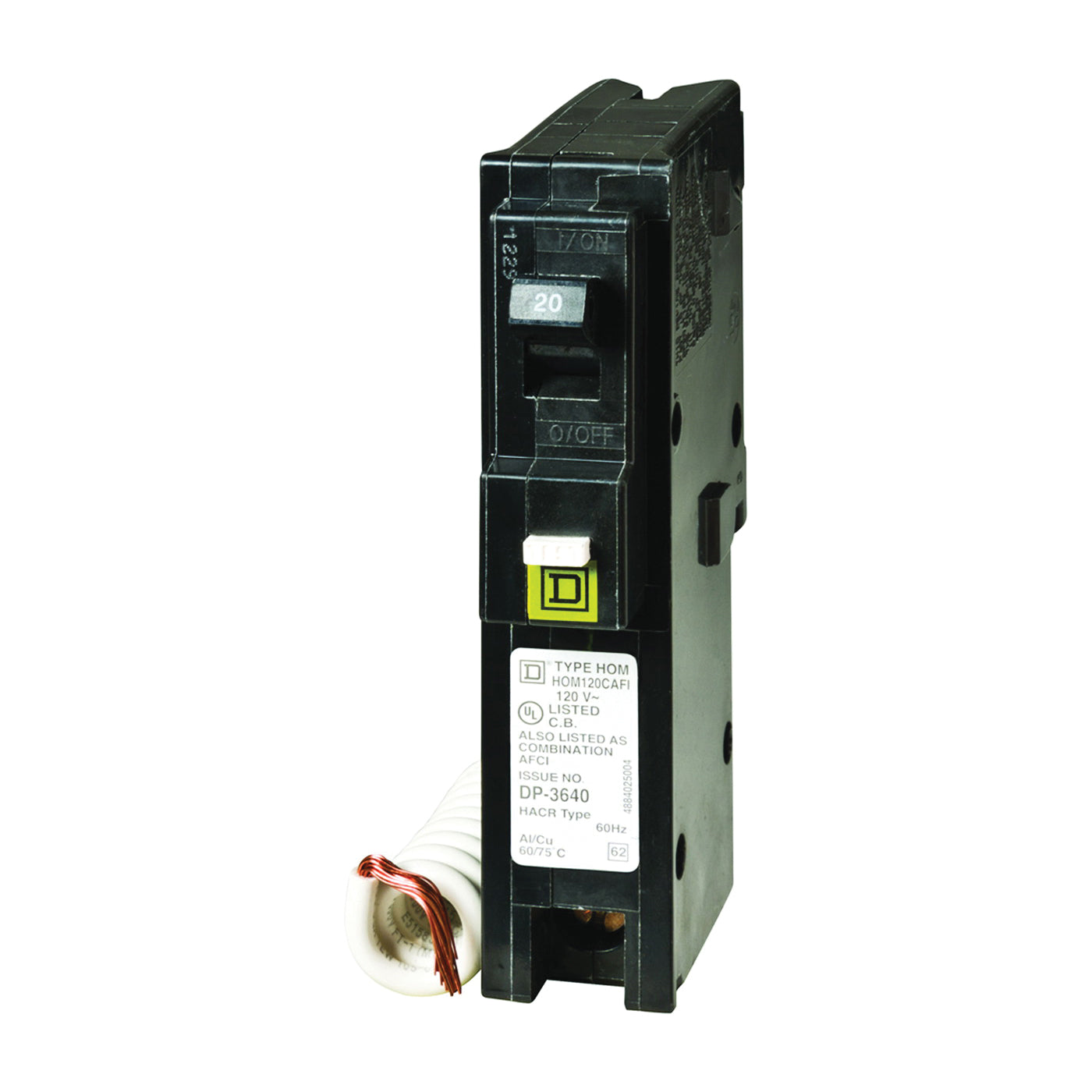

Single-pole 1 in combination CAFCI circuit breaker is designed for arc-fault, overload and short-circuit protection of an electrical system. Designed to detect arcs that are caused by damaged, aged or improperly used wires or cords and to disconnect the power. With Time-Saver Diagnostics, advanced trip indication technology, identifying the type of fault that last occurred. White push to test button. 10 kA interrupting rating. Rated for 120 VAC. Meets Canadian Electrical code. Carded.
Product Details
Manufacturer: Schneider Electric
Manufacturer's Part Number: HOM120CAFIC
Show me more Circuit Breakers
| Type | AFCI, Combination |
| Voltage Rating | 120 V |
| Current Rating | 20 A |
| Number of Phases | 1 |
| Number of Poles | 1 |
| Interrupt Rating | 10 kA |
| Trip Type | Fixed |
| Wire Size | 14 to 8, 14 to 10 AWG |
| Terminal Type | Screw Clamp |
| Mounting Type | Plug |
| Dimensions | 1 in W x 2.98 in D x 3.13 in H |
| Operating Temperature | 104 deg F |
