Whitinsville
SKU: 7119985
Brand: Cutler-Hammer

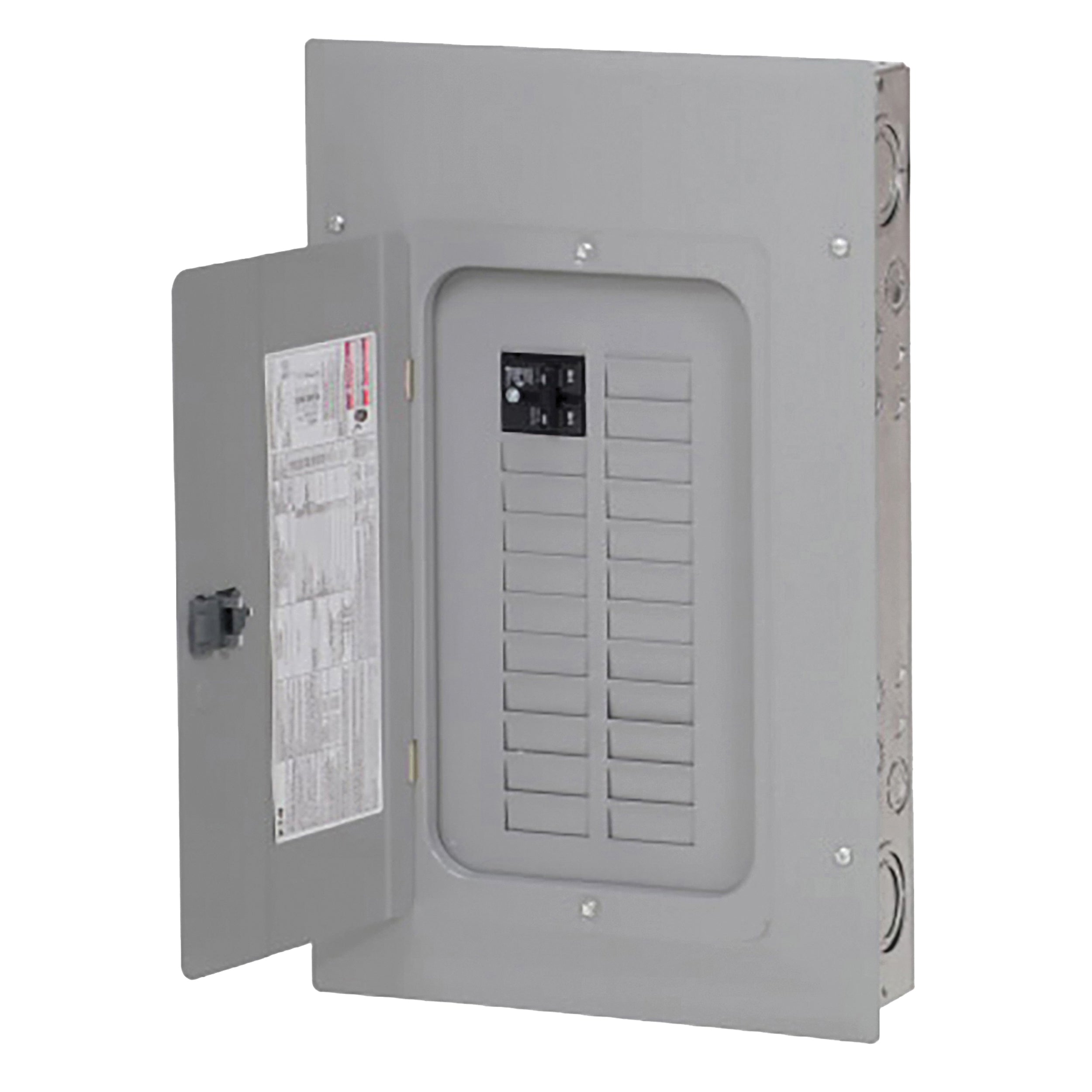

BR style 1 in load center, main circuit breaker, no feed-thru lugs, 100 A, single-phase, 40-pole, 40 circuits, 20 spaces, 120/240 V, #4-1/0 AWG Cu/Al at 60 or 75 deg C wire, Three-wire, NEMA 1 enclosure, d1 box size. Interrupt Rating 25 kAIC. Aluminum bus. Combination mounting. 5.19 in x 14.31 in x 25 in. UL 50, UL 67. Cover included.
Product Details
Manufacturer: EATON
Manufacturer's Part Number: BR2040B100
Show me more Main Breaker Load Centers
| Bus Bar Material | Aluminum |
| Cable Size | 4 to 1/0 AWG |
| Current Rating | 100 A |
| Enclosure Type | NEMA 1 |
| Includes | Cover |
| Interrupt Rating | 25 kA |
| Number of Phases | 1 |
| Number of Poles | 40 |
| Number of Spaces | 20 |
| Temperature Rating | 60 to 75 deg C |
| Voltage Rating | 120/240 V |
| Catalog | Click here to download |
| Line Drawing | Click here to download |
| Specification Sheet | Click here to download |
| Instruction/Installation Manual | Click here to download |
