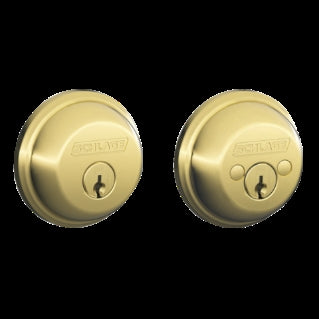

For residential single and multi-family entrance doors. Deadbolt thrown or retracted by key from either side, bolt automatically deadlocks when fully thrown. 7/8 in wrought brass trim ring reinforced with security inserts. Concealed spin ring rotates to protect against wrenching the cylinder. Solid steel door frame reinforcer with 3 in screws protects against kick in attacks. Solid, 1-Piece design to protect against hammer and crowbar prying attacks. 2-1/2 in steel adapter ring, plated to match, provided for accommodating 2-1/8 in crossbore. Door prep 1-1/2 in or 2-1/8 in Crossbore, 7/8 in Edge Bore, 1 in x 2-1/4 in Latch Face. Door thickness 1-3/8 in to 1-3/4 in. Cylinder Solid brass, 5-pin, tumbler C keyway with nickel silver, pick-resistant, spool pins and 2 nickel silver, 5-pin, C section keys. Faceplate 1 in x 2-1/4 in. Strikes of 1-1/8 in x 2-3/4 in, no lip, with dust box and door frame reinforcer. Bolt 7/8 in housing and 1 in throw with concealed hardened steel roller to prevent cutting or sawing. ANSI/BHMA exceeds A 156.5, 1992 Grade 2 with Grade 1 security features. Fits all doors, 2-3/4 in or 2-3/8 in backset, square corner, round corner or drive in preps. Secure Key feature allows you to re-key the lock without ever removing it from the door.
Product Details
Manufacturer: SCHLAGE HARDWARE
Manufacturer's Part Number: B62NV 505
Show me more Deadbolts
Product Features
- Pick- and bump-resistant
- Unique snap and stay design
- Biggest adjustable bolt available
- Quality finishes for lasting beauty
- Adjusts to fit all standard door preparations
- Unique snap and Stay™ design holds deadbolt in place while tightening screws
Product Specifications
| Backset Size | 2-3/8 x 2-3/4 in |
| Cross Bore Diameter | 2-1/8 in |
| Cylinder Type | 5-Pin |
| Dimensions | 4 in H |
| Finish | Polished Brass |
| Includes | (2) Keys, Complete Lockset, Assembly Items |
| Key Type | Keyed Alike |
| Keyway Type | C, K4 |
| Latch Type | Universal |
| Material | Metal |
| Number of Cylinders | 2 |
| Projection Size | 2-1/2 in |
| Security Grade | 1 |
| Strike Size | 1-1/8 in W x 2-3/4 in H |
| Strike Type | Round Corner |
| Suitable for | 1-3/8 to 1-3/4 in Thick Doors |
| Throw Length | 1 in |
