SKU: 7156417
Brand: National Hardware

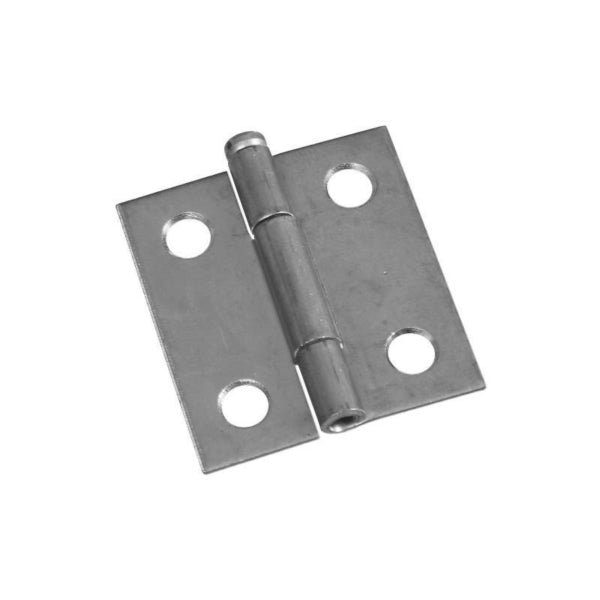

National Hardware Narrow Hinge, 7 lb Weight, Door Leaf Width: 1-1/2 in, Door Leaf Thickness: 0.045 in, Frame Leaf Width: 1-1/2 in, Frame Leaf Thickness: 0.045 in, Number of Knuckles: 5, Pin Type: Removable, Loose, Pin Diameter: 0.106 in, Full Mortise Mounting, Number of Mounting Holes: 4, Mounting Hole Diameter: 0.197 in, Hole Spacing: 1.046 in, Cold Rolled Steel, Zinc, Dimensions: 1-3/8 in L x 1-1/2 in W
Product Details
Manufacturer: STANLEY-NATIONAL HARDWARE
Manufacturer's Part Number:
Show me more Utility Hinges
| Dimensions | 1-3/8 in L x 1-1/2 in W |
| Door Leaf Thickness | 0.045 in |
| Door Leaf Width | 1-1/2 in |
| Finish | Zinc |
| Frame Leaf Thickness | 0.045 in |
| Frame Leaf Width | 1-1/2 in |
| Hole Spacing | 1.046 in |
| Material | Cold Rolled Steel |
| Mounting Hole Diameter | 0.197 in |
| Mounting Type | Full Mortise |
| Number of Knuckles | 5 |
| Number of Mounting Holes | 4 |
| Pin Diameter | 0.106 in |
| Pin Type | Removable, Loose |
| Weight Capacity | 7 lb |
| Catalog | Click here to download |
| Line Drawing | Click here to download |
| Instruction/Installation Manual | Click here to download |
