Whitinsville
SKU: 7156573
Brand: STANLEY-NATIONAL HARDWARE

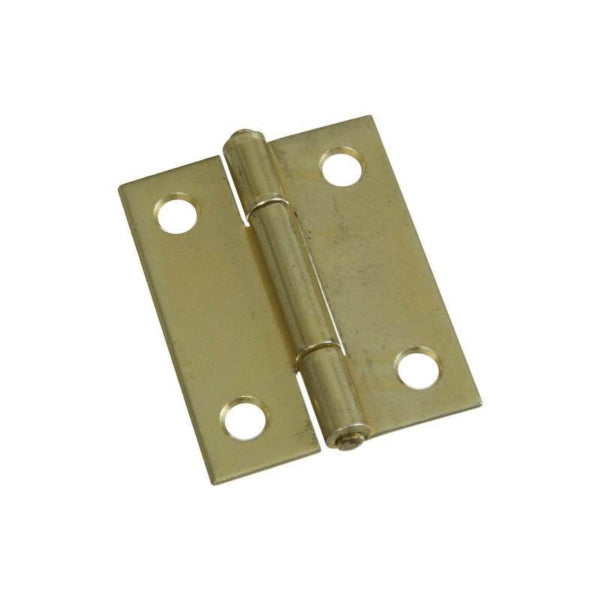

National Hardware Narrow Hinge, 10 lb Weight, Door Leaf Width: 2 in, Door Leaf Thickness: 0.056 in, Frame Leaf Width: 2 in, Frame Leaf Thickness: 0.056 in, Number of Knuckles: 3, Pin Type: Fast Spun, Pin Diameter: 0.128 in, Orientation Type: Left, Right, Mortise Mounting, Number of Mounting Holes: 4, Mounting Hole Diameter: 0.218 in, Hole Spacing: 1.437 in, Steel, Brass, Dimensions: 1.564 in L x 2 in W
Product Details
Manufacturer: STANLEY-NATIONAL HARDWARE
Manufacturer's Part Number: N146-175
Show me more Utility Hinges
| Weight Capacity | 10 lb |
| Door Leaf Width | 2 in |
| Door Leaf Thickness | 0.056 in |
| Frame Leaf Width | 2 in |
| Frame Leaf Thickness | 0.056 in |
| Number of Knuckles | 3 |
| Pin Type | Fast Spun |
| Pin Diameter | 0.128 in |
| Orientation Type | Left, Right |
| Mounting Type | Mortise |
| Number of Mounting Holes | 4 |
| Mounting Hole Diameter | 0.218 in |
| Hole Spacing | 1.437 in |
| Material | Steel |
| Finish | Brass |
| Dimensions | 1.564 in L x 2 in W |
| Line Drawing | Click here to download |
| Instruction/Installation Manual | Click here to download |
| Catalog | Click here to download |
