Whitinsville
SKU: 1119130
Brand: STANLEY-NATIONAL HARDWARE

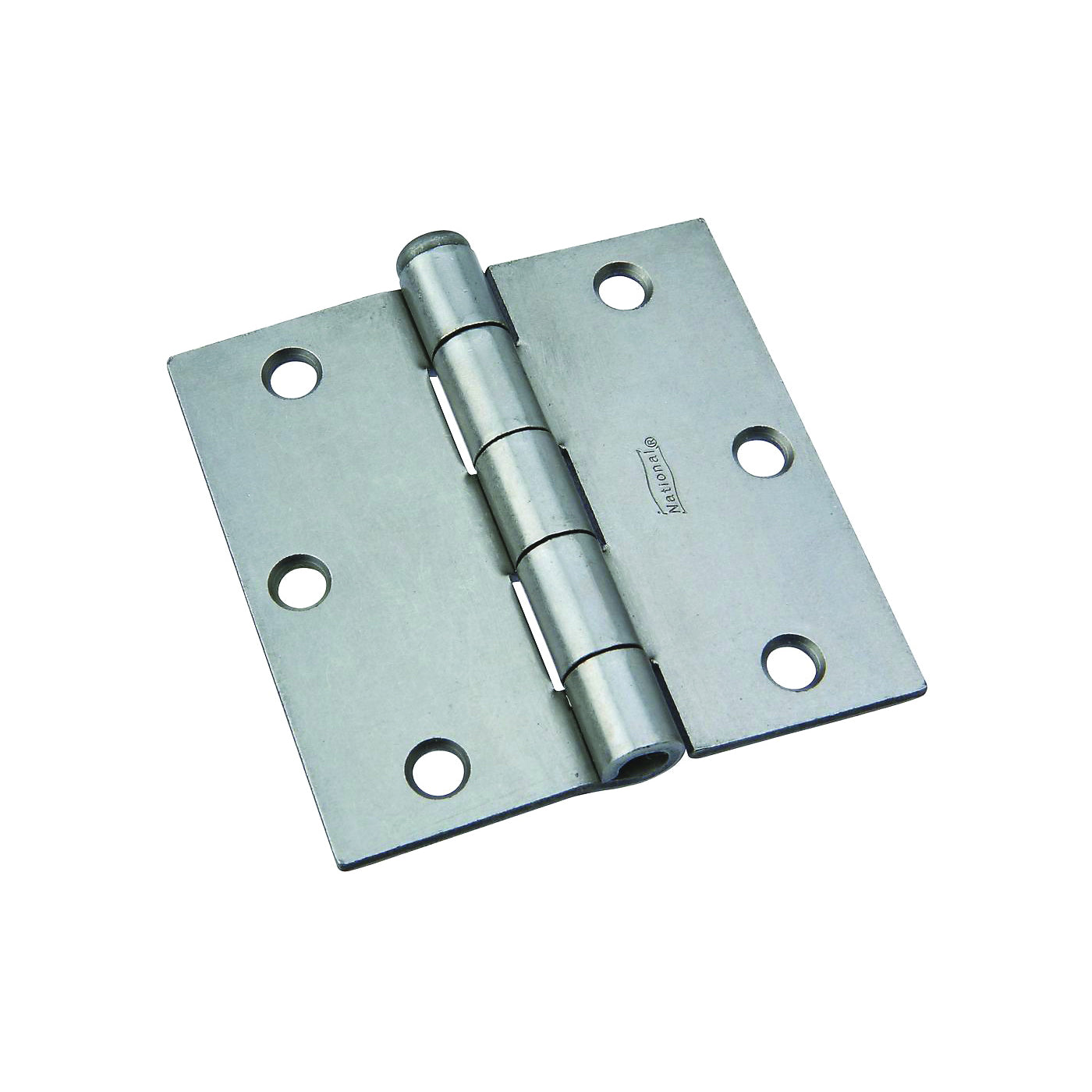

504. Designed for general utility and industrial applications. Hinges are swaged for mortise installations. Loose pin allows doors to be removed without taking off hinges. Plain steel version can be welded. Boxed.
Product Details
Manufacturer: STANLEY-NATIONAL HARDWARE
Manufacturer's Part Number: N139-873
Show me more Utility Hinges
| Weight Capacity | 70 lb |
| Door Leaf Width | 3-1/2 in |
| Door Leaf Thickness | 0.088 in |
| Frame Leaf Width | 3-1/2 in |
| Frame Leaf Thickness | 0.088 in |
| Number of Knuckles | 5 |
| Pin Type | Removable, Loose |
| Mounting Type | Full Mortise |
| Number of Mounting Holes | 6 |
| Hole Spacing | 1-13/32 in |
| Material | Cold Rolled Steel |
| Finish | Steel |
| Dimensions | 3-1/2 in L x 3-1/2 in W |
| Instruction/Installation Manual | Click here to download |
| Specification Sheet | Click here to download |
| Line Drawing | Click here to download |
