SKU: 6194211
Brand: Bussmann

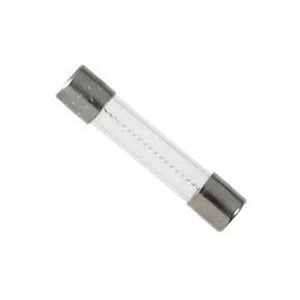

Original electronic fast acting fuse. 1/4 in x 1-1/4 in glass tube with nickel-plated brass endcaps. 250 V maximum. UL Listed, CSA certification.
Product Details
Manufacturer: EATON
Manufacturer's Part Number: BP/AGC-5-RP
Show me more Cartridge Fuses
| Body Material | Glass |
| Contact Material | Brass |
| Current Rating | 5 A |
| Diameter | 1/4 in |
| Element Type | Single |
| Fuse Group | G |
| Fuse Type | Electronic, Fast Acting |
| Interrupt Rating | 200 A, 10 kA |
| Length | 1-1/4 in |
| Rejection/Non-Rejection | Non-Rejection |
| Resistance | 0.024 Ohm |
| Terminal Type | Ferrule |
| Voltage Rating | 250 V |
| Catalog | Click here to download |
| Specification Sheet | Click here to download |
