Whitinsville
SKU: 1817030
Brand: Cutler-Hammer

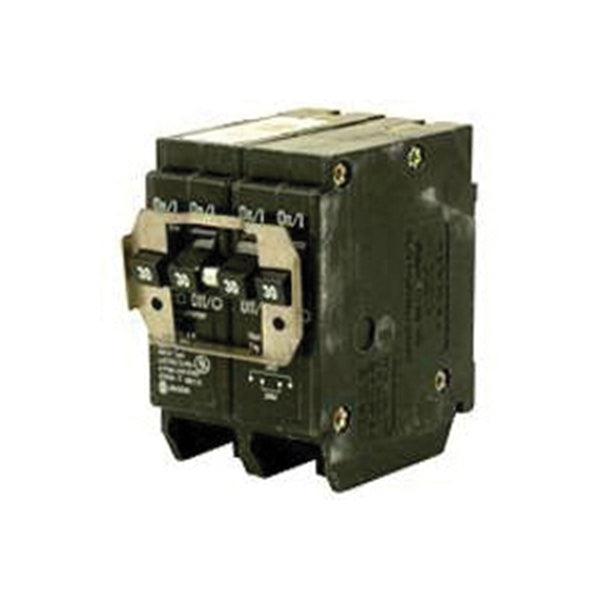

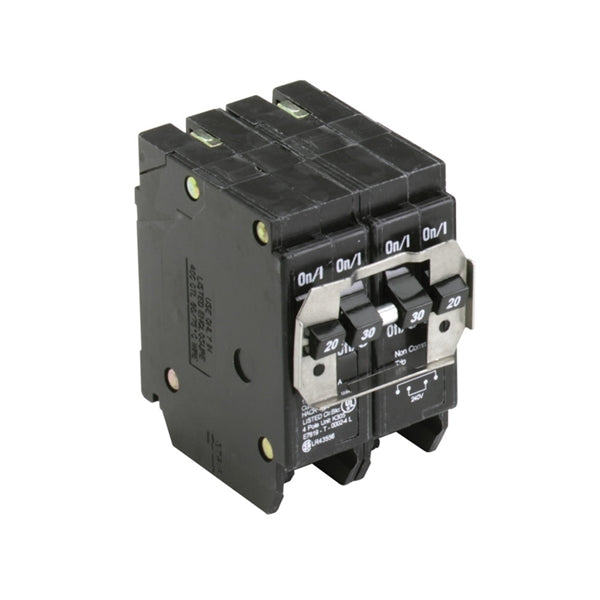

CTL Quadplex breaker with rejection tab, 2-pole outer independent trip and 2-pole center independent trip. Requires two 1 in spaces, Wire size range #14-4, 120/240 VAC.9 lb weight, 3 in x 2 in x 3 in. UL listed, Meets UL 489. Listing for HACR applications. Meets Federal Spec classification W-C375. 120/240 V, 10,000 AIC interrupting capacity,.
Product Details
Manufacturer: EATON
Manufacturer's Part Number: BQ220230
Show me more Circuit Breakers
| Actuator Type | Magnetic, Thermal |
| Current Rating | 20/30 A |
| Dimensions | 3.1 in L x 0.78 in W x 2.89 in H |
| Interrupt Rating | 10 kA |
| Mounting Type | Plug |
| Number of Phases | 1 |
| Number of Poles | 4 |
| Number of Spaces | 2 |
| Operating Frequency | 50/60 Hz |
| Operating Temperature | 60 to 75 deg C |
| Suitable for | BR Series Load Centers |
| Terminal Type | Feed-Thru |
| Type | Quad, Type BQ |
| Voltage Rating | 120/240 V |
| Wire Size | 14 to 4 AWG |
| Catalog | Click here to download |
| Specification Sheet | Click here to download |
