SKU: 6373922
Brand: Cutler-Hammer

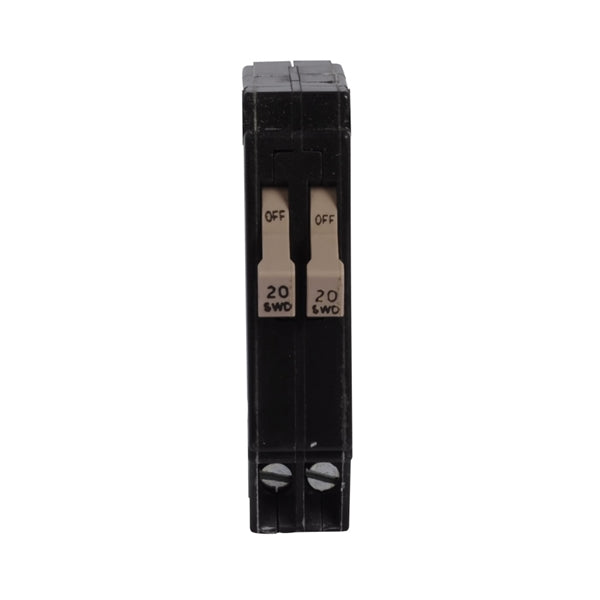

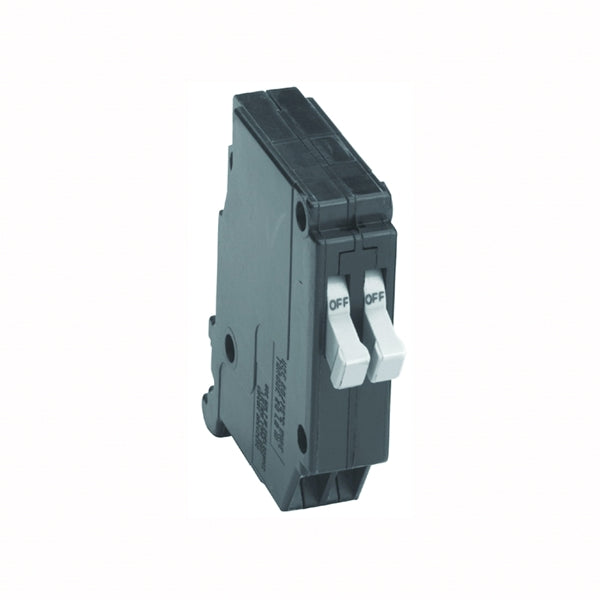

Single-pole, twin (CTL) 3/4 in (19.1 mm) per pole, requires one 3/4 in (19.1 mm) space. Wire size range Cu/Al 60 deg C or 75 deg C number 14-8. Class CTL 10 kAIC. Rejection feature. Use only with load centers marked for use with CHT breakers. HACR and switching duty rated. Rated for 120/240V.
Product Details
Manufacturer: EATON
Manufacturer's Part Number: CHT2020CS
Show me more Circuit Breakers
| Actuator Type | Magnetic, Thermal |
| Current Rating | 20 A |
| Dimensions | 3-1/2 in L x 3/4 in W |
| Interrupt Rating | 10 kA |
| Mounting Type | Plug |
| Number of Phases | 1 |
| Number of Poles | 1 |
| Number of Spaces | 1 |
| Operating Frequency | 50/60 Hz |
| Operating Temperature | 60 to 75 deg C |
| Suitable for | load centers and Residential |
| Trip Type | Common, Fixed |
| Type | Mini, Type CHT |
| Voltage Rating | 120 V |
| Wire Size | 14 to 8 AWG |
| Catalog | Click here to download |
| Specification Sheet | Click here to download |
