    Home / EATON / Eaton 7728LA-SP Combination Switch, 15 A, 120, 277 VAC, 3-Way, Screw Terminal, Light Almond

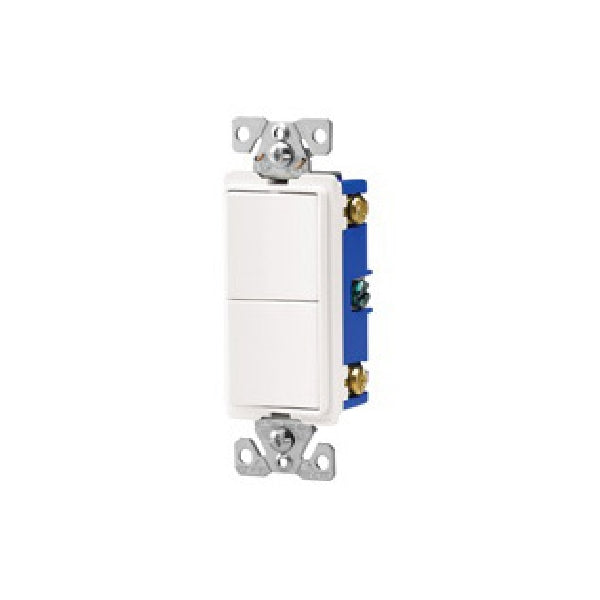

    Eaton 7728LA-SP Combination Switch, 15 A, 120, 277 VAC, 3-Way, Screw Terminal, Light Almond

    SKU: 3291341

    Brand: Eaton

    $14.99$0.00
    7 items left


    Commercial-grade, decorator combination switch/receptacle back and side wire feature the decorator design for easy, smooth actuation of the rocker panels. 120/277 VAC rating is ideal for incandescent or fluorescent lighting fixtures. Ultrasonic welding and integrated construction of the strap and body provide superior ground integrity even under heavy use.

    Product Details

    Manufacturer: Eaton

    Manufacturer's Part Number: 7728LA-SP

    Show me more Rocker Switches

    • 120/277 V/AC rating is ideal for incandescent or fluorescent lighting fixtures
    • Thermoplastic rocker, top and back body are virtually unbreakable to deliver years of durable performance
    • Ultrasonic welding and integrated construction of the strap and body provide superior ground integrity even under heavy-use
    • Durable, injection molded housings and PVC resin comply with UL94 V0 flammability ratings
    • Automatic grounding system eliminates the need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where a jumper is used
    • Steel mounting strap is zinc-plated for added corrosion resistance
    • Backwire clamps on side terminals provide for easy installation of #12 and #14 wire
    • Terminal screws are backed out and ready for wiring to enhance ease of installation
    • Break-off provision on switches for wiring both devices on the same circuit or on separate circuits
    • Triple wipe blade contacts and double wipe ground contacts to insure long-term plug retention (TR7730)
    Voltage Rating 120, 277 VAC
    Current Rating 15 A
    Wattage Rating 15 W
    Number of Poles 1
    Contact Material Brass
    Contact Configuration 3-Way
    Terminal Type Screw
    Temperature Rating -20 to 60 deg C
    Mounting Type Flush
    Housing Material Polycarbonate/PVC/Thermoplastic
    Color Light Almond
    Dimensions 1.3 in L x 1.08 in W x 4.19 in H
