SKU: 7193543
Brand: Eaton Wiring Devices

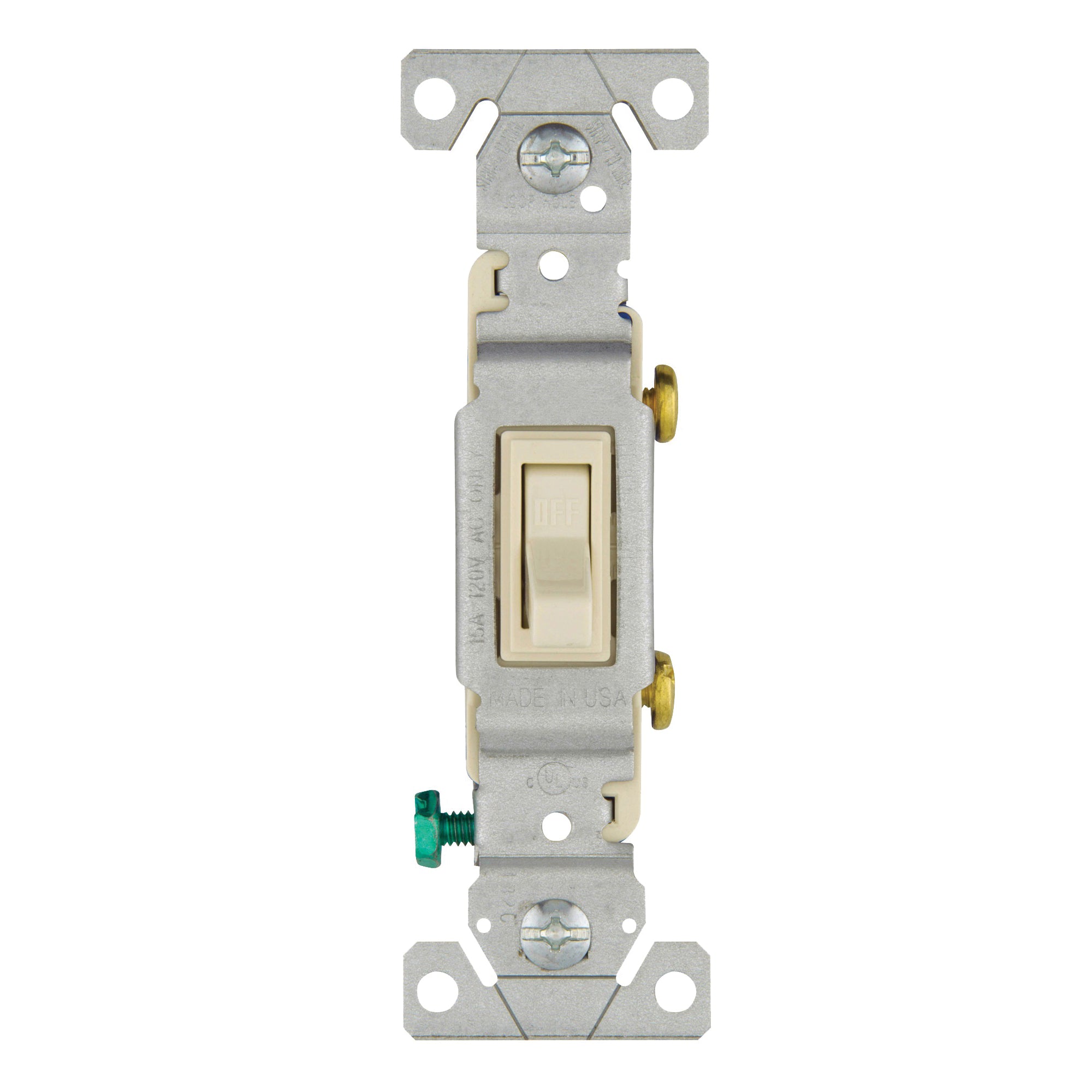

Longer, wider strap on toggle switches provides 40% more contact area to wallboard. Virtually eliminates floating installations. Industrial design cam-action mechanism insures quiet switch action. Patented built-in wire stripper for #14 and #12 wire to speed installation. Unbreakable top and bottom housing eliminates call-backs due to jobsite breakage. Patented built-in wire looper for pre-looping. Three-way switches feature additional push-in common termination for feed-through tapping. Push-in terminals accept #14 solid wire only. Side wire terminals accept up to #10 solid or stranded wire. Tri-combo screws accept slotted, Phillips and Robertson head tools for installations in both the US and Canada.
Product Details
Manufacturer: EATON
Manufacturer's Part Number: 1301-7LA
Show me more Toggle Switches
| Actuator Type | Toggle |
| Color | Light Almond |
| Current Rating | 15 A |
| Dielectric Strength | 1500 V |
| Dimensions | 4.2 in L x 1.3 in W x 1.103 in D |
| Housing Material | Polycarbonate |
| Mounting Type | Wall |
| Number of Poles | 1 |
| Temperature Rating | -20 to 60 deg C |
| Voltage Rating | 120 V |
| Wattage Rating | 0.5 hp |
| Specification Sheet | Click here to download |
