SKU: 6971113
Brand: Eaton Wiring Devices

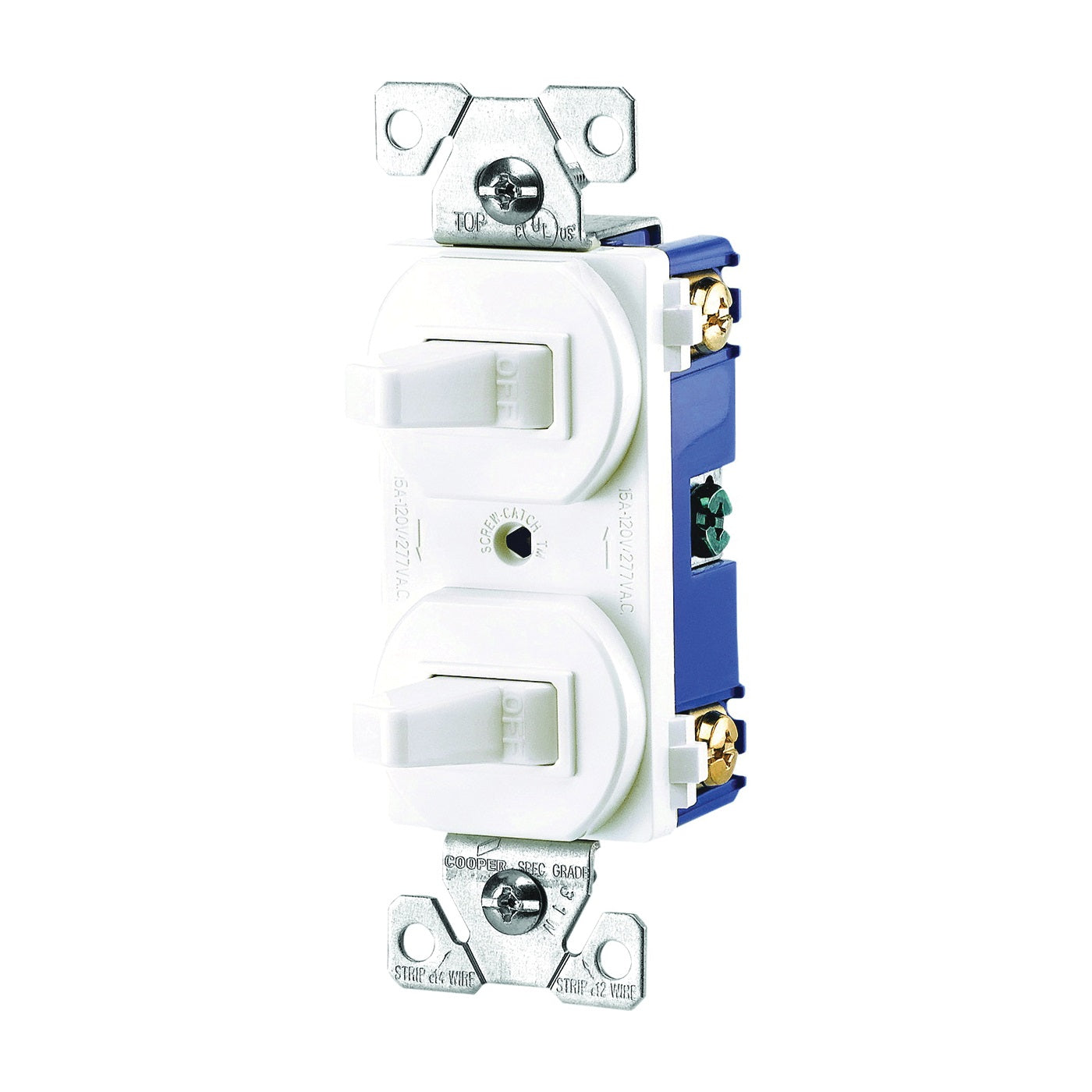

Grounding terminal screw standard. Combination switch with additional switch has 120/277 V rating, ideal for fluorescent lighting fixtures typical in commercial applications. 0.050 in thick steel mounting strap zinc-plated for corrosion resistance. Break-off provision for wiring both devices on same circuit or on separate circuits. Terminal screws backed out and ready for wiring. Side wire terminals accept up to #10 solid or stranded wire. Combination slot/Phillips head mounting and terminal screws. Switches meet all UL 20 requirements. UL Listed.
Product Details
Manufacturer: EATON
Manufacturer's Part Number: 271W-BOX
Show me more Toggle Switches
| Actuator Type | Toggle |
| Color | White |
| Contact Configuration | SPDT |
| Contact Material | Brass |
| Current Rating | 15 A |
| Dimensions | 4.19 in L x 1.3 in W x 1.08 in D |
| Housing Material | Nylon |
| Mounting Type | Strap |
| Number of Poles | 1 |
| Switch Operation | Back and Side |
| Temperature Rating | -20 to 60 deg C |
| Terminal Type | Screw |
| Voltage Rating | 120/277 V |
| Catalog | Click here to download |
