Whitinsville
SKU: 7193691
Brand: Eaton

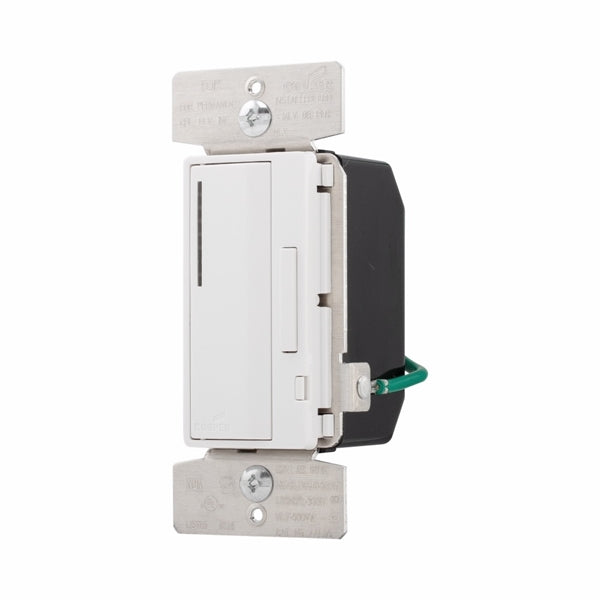

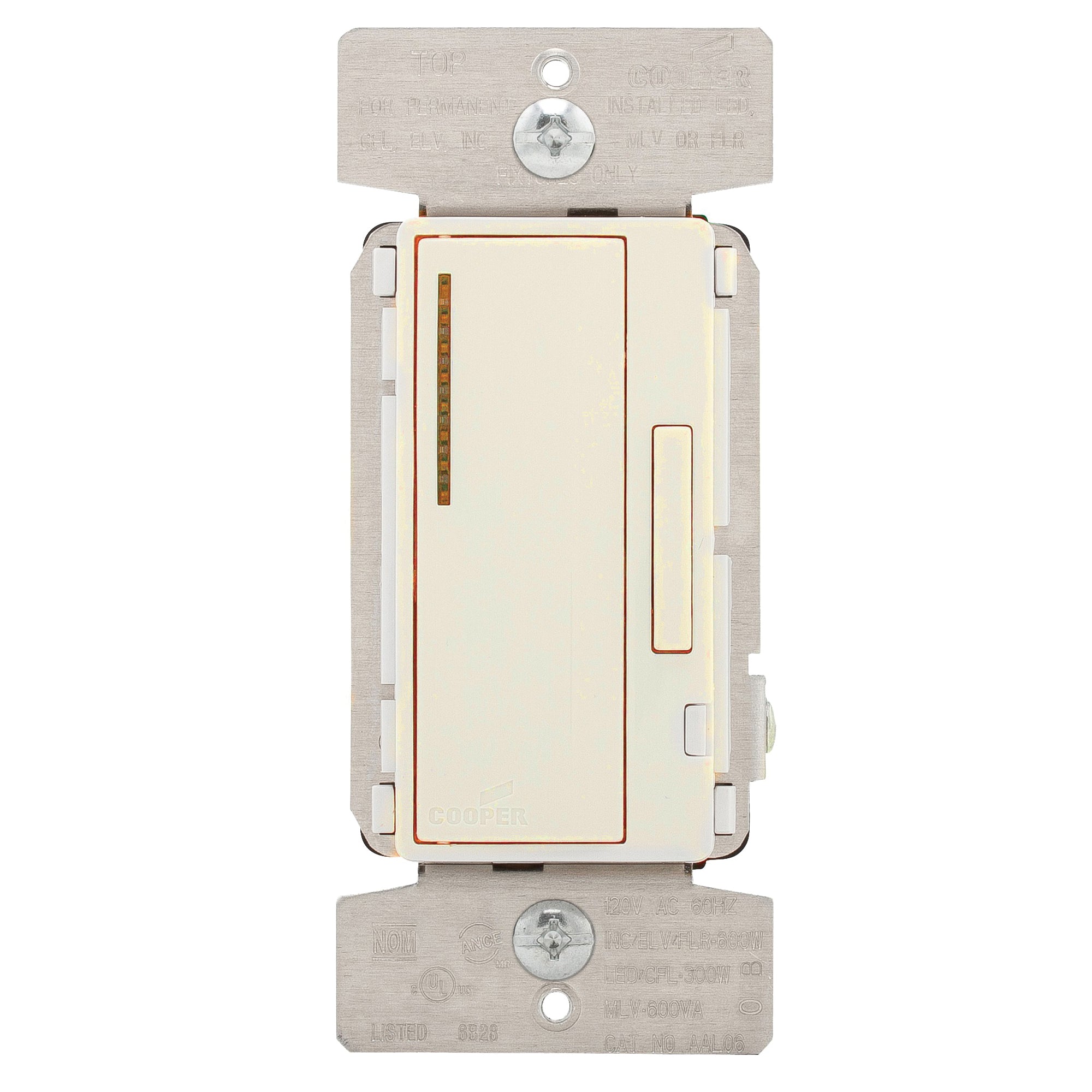

Replaces a standard switch. Provides smooth, full range digital dimming for incandescent, halogen, electronic low-voltage, magnetic low-voltage, dimmable LED/CFL and Fluorescent lighting. 300 W dimmable LED/CF, 600 W Incan/dimmable ELV/halogen/dimmable FLR 600 VA MLV, 120 VAC, 60 Hz requires neutral connection in wallbox. Ability to set min/max dimmer level for maximum compatibility with different loads. Rapid start feature which allows the light to come on instantly in the case of LED/CFL loads and the ability to disable that feature. One master dimmer works with up to five (5) accessory dimmers, Orgill Sku #339-6181. Tri-color packaging which provides one unit box with three color faceplates. cULus listed and NOM certified.
Product Details
Manufacturer: Eaton
Manufacturer's Part Number: AAL06-C2-K
Show me more Dimmers
| Voltage Rating | 120 V |
| Current Rating | 5 A |
| Frequency Rating | 60 Hz |
| Wattage Rating | 300 W |
| Number of Poles | 1 |
| Lamp Type | CFL, LED |
| Start Type | Rapid |
| Operation Modes | 3-Way |
| Control Type | ON/OFF Push Pad |
| Mounting Type | Flush |
| Terminal Type | Lead Wire |
| Temperature Rating | 0 to 40 deg C |
| Material | Polycarbonate |
| Color | Ivory/Light Almond/White |
| Dimensions | 2.4 in L x 3 in W x 4.4 in H |
| Includes | Color Change Faceplate Kit |
| Specification Sheet | Click here to download |
| Catalog | Click here to download |
