Whitinsville
SKU: 1478239

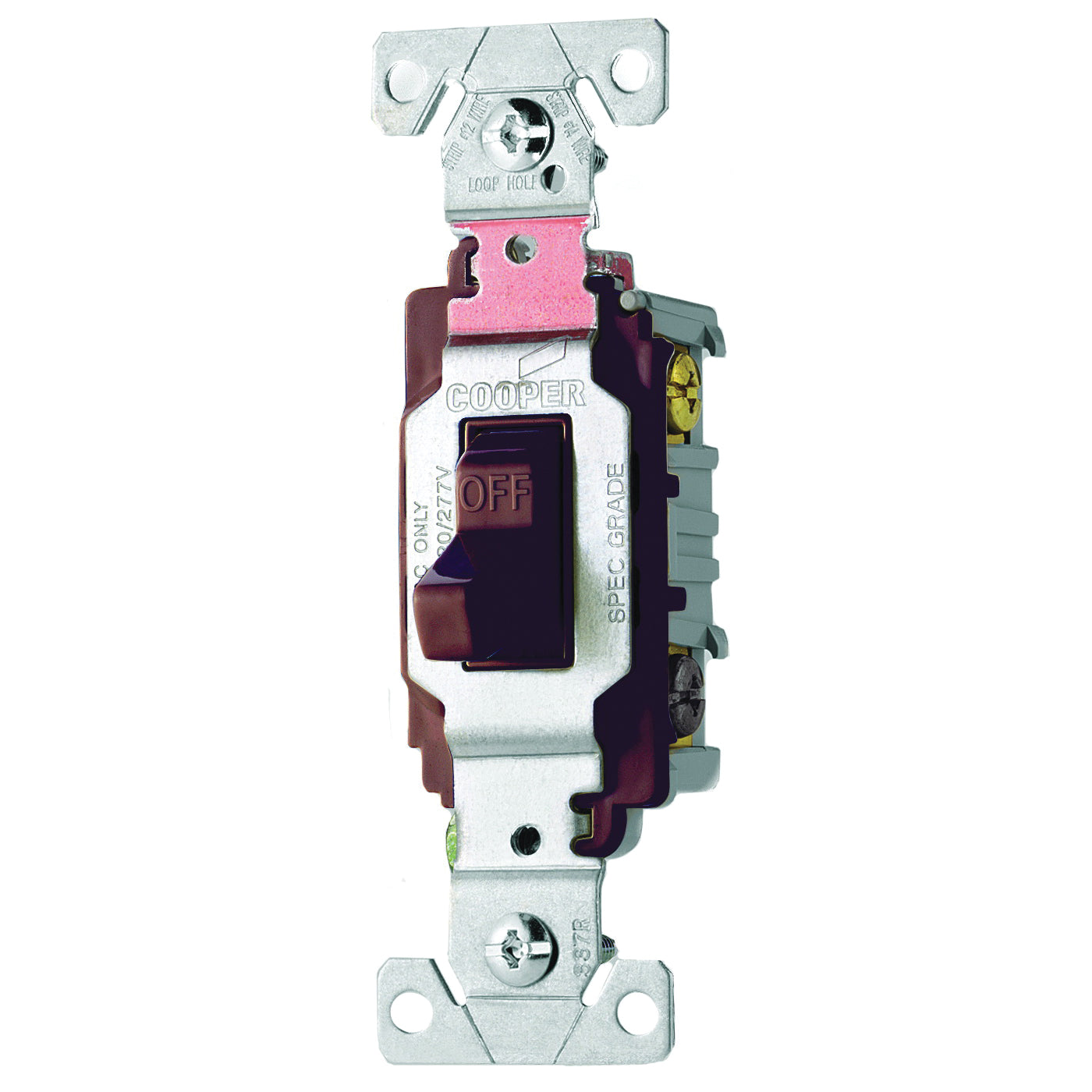

Brand: Eaton Wiring Devices
Side wire terminals accept up to number 10 solid or stranded wire. Rated for fluorescent lighting fixtures typical in commercial applications. 0.050 in thick steel mounting strap zinc-plated for corrosion resistance. Ground screw terminal standard. 20 A, 120/277 V. Meets all UL 20 requirements, Federal Specifications WS 896.
Product Details
Manufacturer: EATON
Manufacturer's Part Number: CS320B
Show me more Toggle Switches
| Actuator Type | Cam |
| Color | Brown |
| Contact Material | Silver |
| Current Rating | 20 A |
| Dielectric Strength | 1500 V |
| Housing Material | Nylon |
| Mounting Type | Wall |
| Number of Positions | 3 |
| Temperature Rating | -20 to 60 deg C |
| Terminal Type | Screw |
| Voltage Rating | 120/277 V |
| Wattage Rating | 1 to 2 hp |
| Catalog | Click here to download |
| Specification Sheet | Click here to download |
