Whitinsville
SKU: 6700173
Brand: Square D

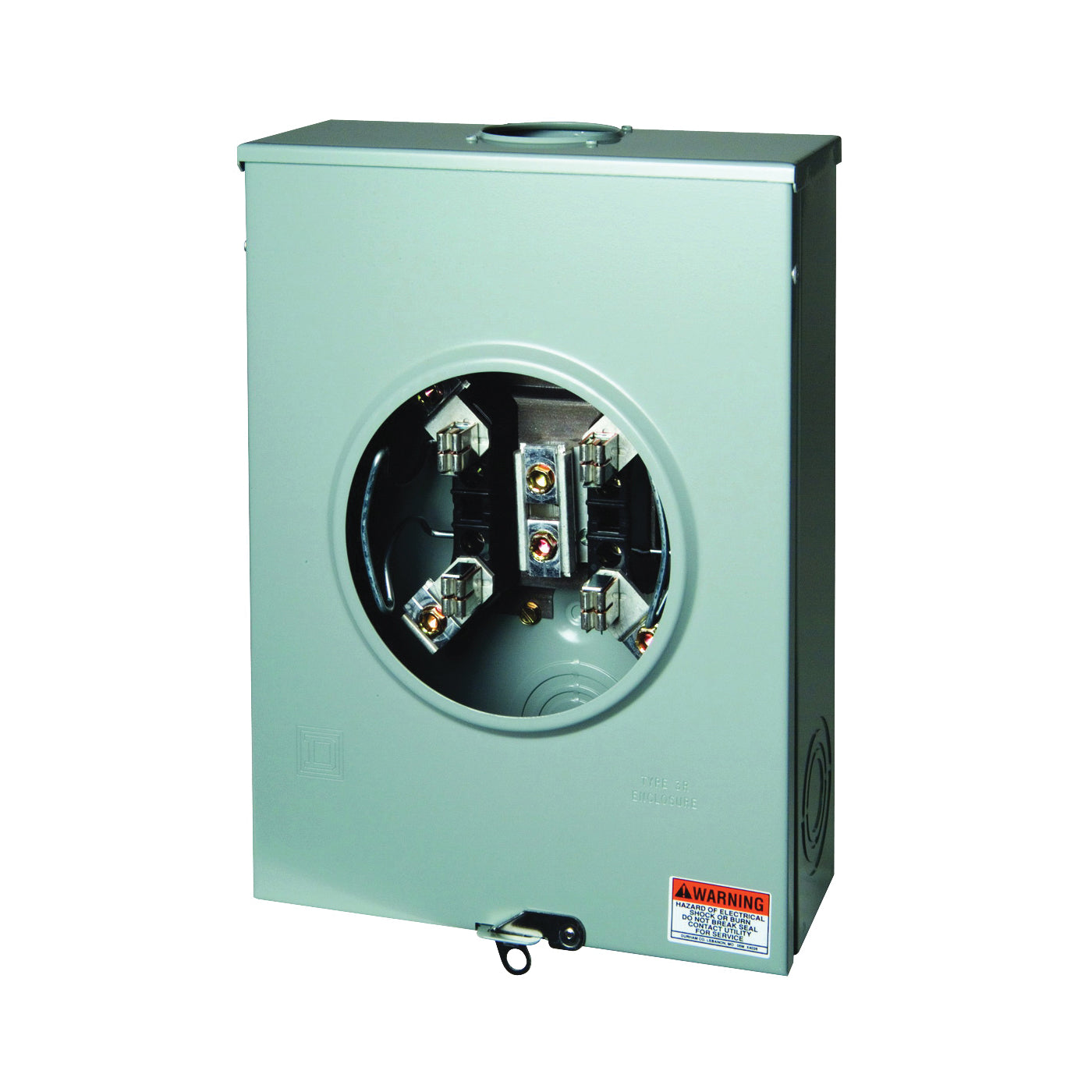

Single phase, 3-wire, 4-jaw, 600 VAC maximum. 10,000 RMS symmetrical amp short circuit current rating. Hub provisions have an A-type size and its enclosure is made of aluminum. Supplied with bonded neutral. Requires bolt-on hub or closing plate (not included) for hub opening in top endwall. Bypass and jaw release sold separately. It can accommodate buildings supplied by overhead power lines or underground cables. UL listed.
Product Details
Manufacturer: SCHNEIDER ELECTRIC
Manufacturer's Part Number: UTRS213B
Show me more Meter Sockets
| Cable Entry | Overhead, Underground |
| Current Rating | 200 A |
| Dimensions | 15 in H x 11 in W x 4-1/2 in D |
| Enclosure Type | NEMA 3R |
| Material | Steel |
| Number of Jaws | 4 |
| Number of Knockouts | 8 |
| Number of Phases | 1 |
| Voltage Rating | 600 V |
| Wire Size | 1/0 AWG to 350 kcmil, 14 to 2 AWG |
| Catalog | Click here to download |
| Specification Sheet | Click here to download |
