SKU: 2876175
Brand: Eaton

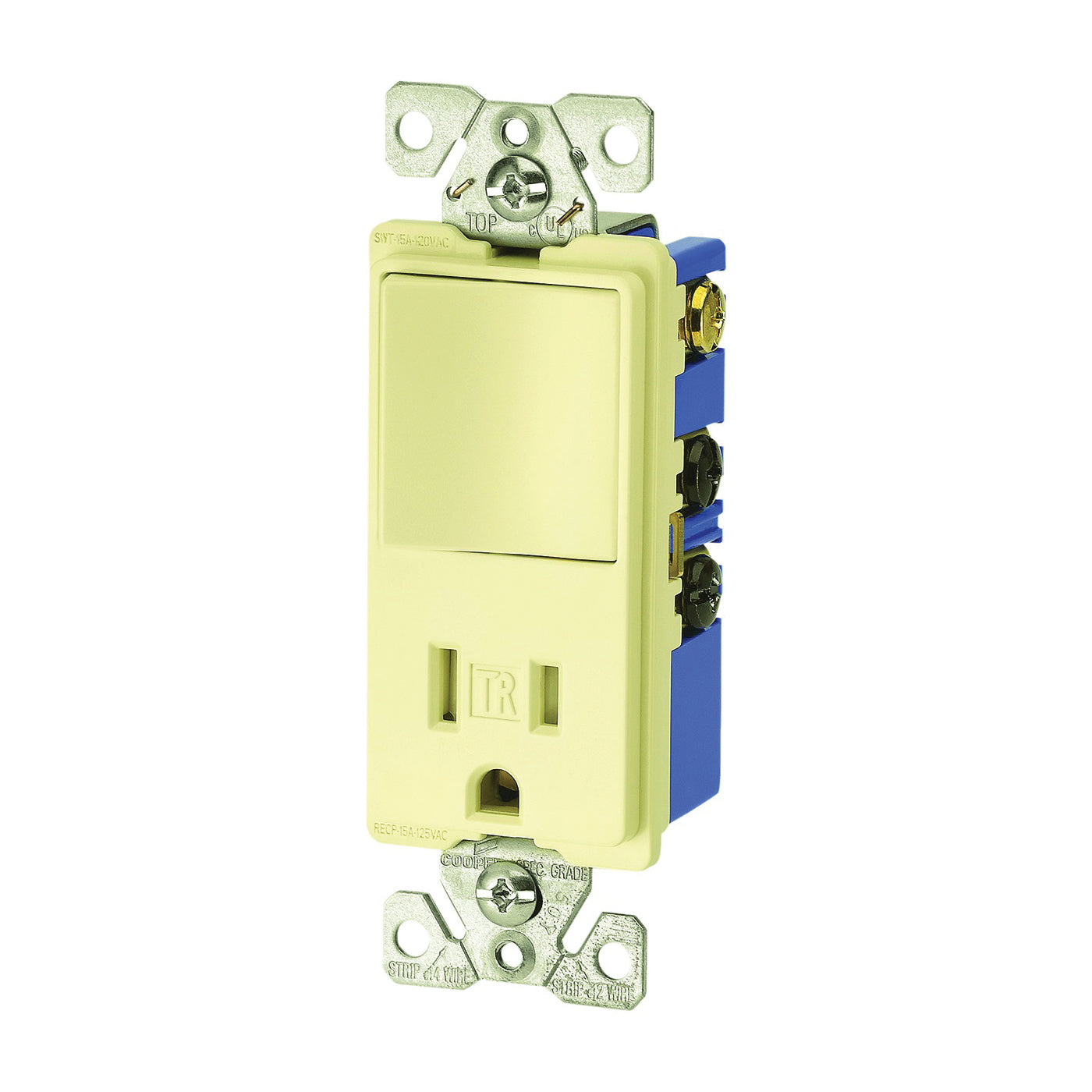

Decorator heavy-duty-grade combination device features 15 A 120 V switch and tamper-resistant 15 A receptacle. Features UL listed tamper-resistant shutters designed to prevent the insertion of foreign objects. TR7730 switch is horsepower-rated for motor loads per UL 20. Thermoplastic rocker, top and backbody are virtually unbreakable to deliver years of durable performance. Ultrasonic welding and integrated construction of the strap and body provide excellent ground integrity even under heavy use. Durable, injection molded housings and PVC resin comply with UL94 V0 flammability ratings. Tri-combo screw heads offer greater installation flexibility.
Product Details
Manufacturer: Eaton
Manufacturer's Part Number: TR7730V
Show me more Outlet & Switch Combos
| Type | Heavy-Duty |
| Voltage Rating | 120/277 V |
| Current Rating | 15 A |
| Number of Poles | 1 |
| Wiring Type | Back and Side |
| Wire Size | 14 to 12 AWG |
| Dielectric Strength | 1500 V |
| Terminal Type | Screw |
| Operating Temperature | -20 to 60 deg C |
| Mounting Type | Flush |
| Material | Thermoplastic |
| Color | Ivory |
| Dimensions | 1.08 in D x 4.19 in H |
| Specification Sheet | Click here to download |
| Instruction/Installation Manual | Click here to download |
