Whitinsville
SKU: 6929491
Brand: Siemens

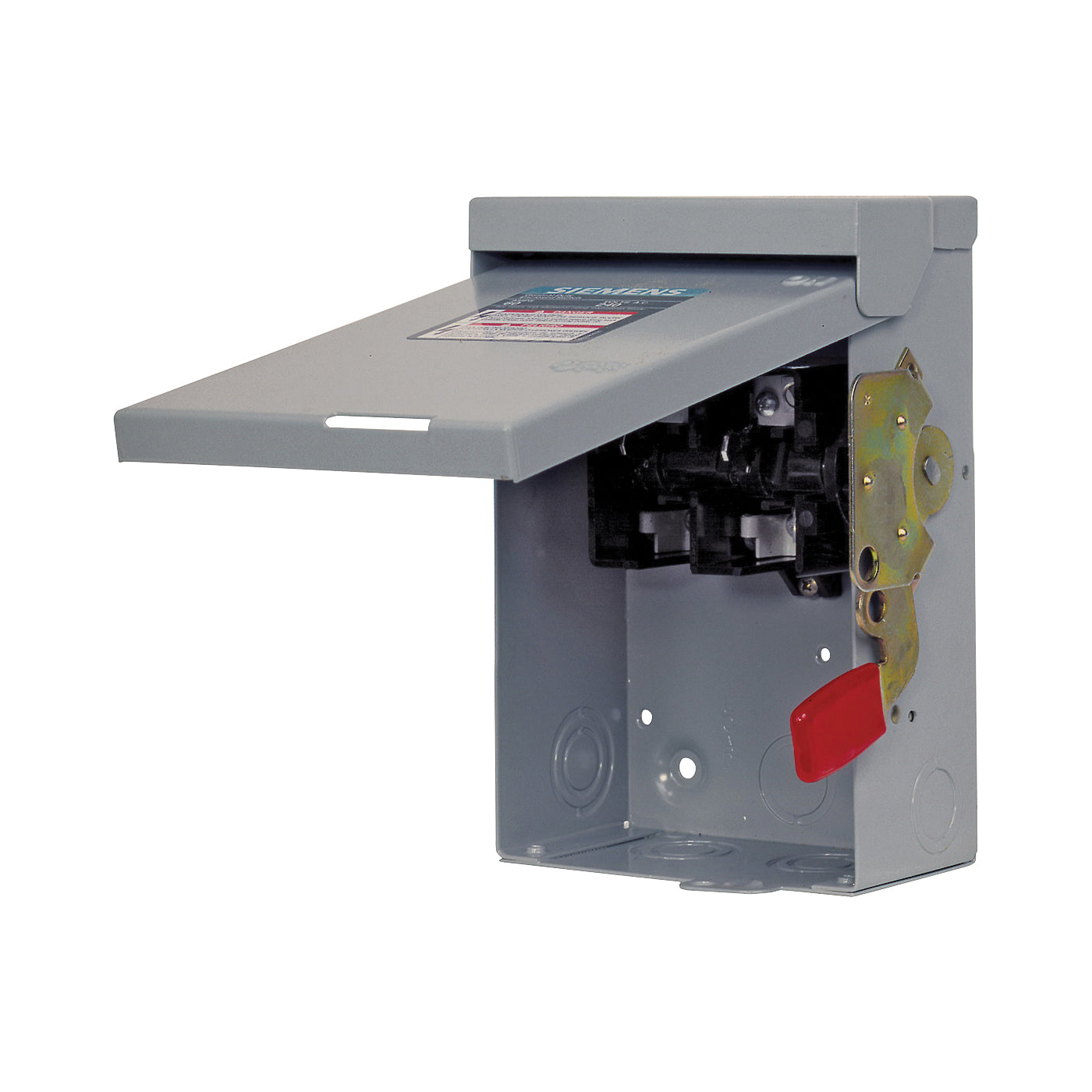

Single phase, 2-pole, 3-wire, 240 V, 10,000 AIC maximum, rated 10 hp maximum. Compact size, quick-make, quick-break mechanism, galvanized steel enclosure. Bottom cable entry and exit only, no hub provision supplied. Padlocking provisions to lock cover or lock in off position. Lugs suitable for copper or aluminum. Silver plated copper conductors. GSGK60 equipment ground kit sold separately. Number 14-3 AWG line and load wire range. 5-9/16 in x 8-1/4 in x 3-1/8 in. UL listed file No.E4776, NEMA Type GD, meets federal specifications WS865C.
Product Details
Manufacturer: SIEMENS
Manufacturer's Part Number: LNF222RU
Show me more Safety Switches
| Current Rating | 60 A |
| Length | 8-1/4 in |
| NEMA Rating | NEMA 3R |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Short Circuit Rating | 10 kA |
| Terminal Type | Lug |
| Type | Lever, Non-Fusible |
| Voltage Rating | 240 V |
| Wattage Rating | 240 W |
| Width | 5-1/2 in |
