Whitinsville
SKU: 6976385
Brand: Siemens

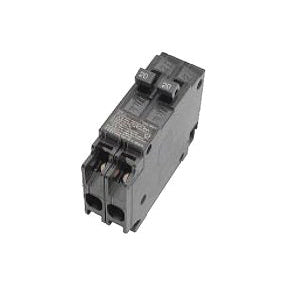

Complete, unenclosed, molded case breaker with non-interchangeable trip. Takes the place of 2 single pole breakers in 1 in of space. Will replace American Switch, Westinghouse Type BR, Bryant, Challenger, Sylvania, Crouse-Hinds, Murray, Frank Adams, General Electric (full size only), General Switch, I-T-E, Gould, Montgomery Ward and Sears. HACR and SWD rated. UL listed and CSA certified. 120 VAC, 10,000 AIR.
Product Details
Manufacturer: SIEMENS
Manufacturer's Part Number: MP2020
Show me more Circuit Breakers
| Actuator Type | Magnetic, Thermal |
| Current Rating | 20 A |
| Dimensions | 3.5 in L x 3.5 in W x 12.8 in H |
| Interrupt Rating | 10 kA |
| Mounting Type | Plug |
| Number of Poles | 1 |
| Operating Frequency | 50/60 Hz |
| Operating Temperature | 40 deg C |
| Suitable for | Protecting Home Wiring From High-Temperatures |
| Terminal Type | Lug |
| Trip Type | Standard |
| Type | Duplex, Type MP-T |
| Voltage Rating | 120/240 V |
| Wire Size | 12 to 8, 14 to 8 AWG |
| Catalog | Click here to download |
