Whitinsville
SKU: 6929350
Brand: SIEMENS

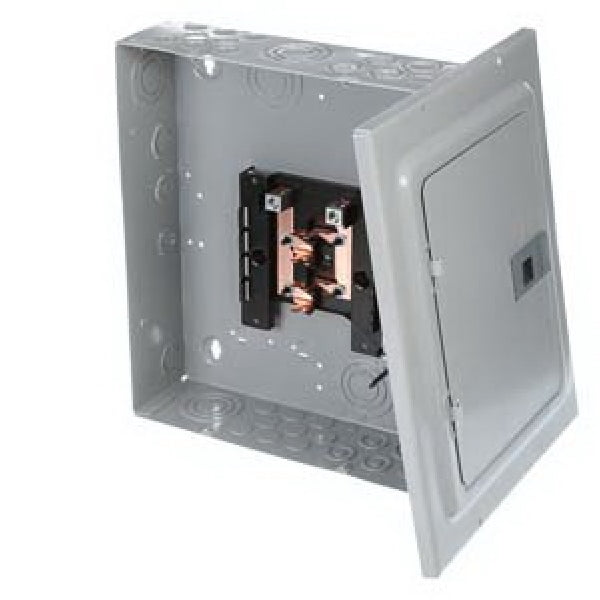

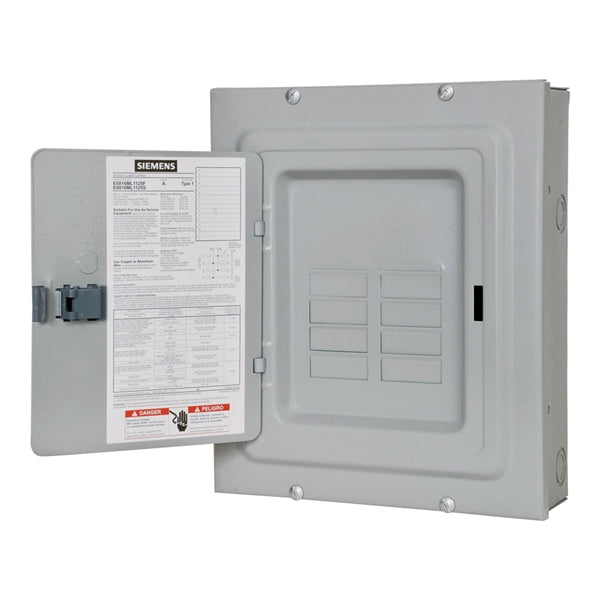

Code-gauge steel enclosure. Single phase, 3-wire, solid neutral, 8 spaces and 16 circuits maximum 1-pole, 4 QP breakers maximum 2-pole, 120/240 V. 10,000 AIR. One piece plated aluminum bus bar. 100% circuit breaker twist outs. Positive load side circuit breaker hook rail. Suitable for use as service entrance equipment when a main breaker (125 A maximum) is back-fed in branch position and used with main breaker retainer clip No MBR1. When used as service equipment, any unused neutral position may be used for equipment grounding. Rotate entire device 180 deg for bottom feed. Gray enamel finish. 12-3/8 in x 14-3/4 in x 3-7/8 in. UL listed, complies fully with NEC and UL requirements for Class CTL.
Product Details
Manufacturer: SIEMENS
Manufacturer's Part Number: E0816ML1125S
Show me more Main Lug Load Centers
| Voltage Rating | 120/240 V |
| Current Rating | 125 A |
| Number of Phases | 1 |
| Number of Spaces | 8 |
| Number of Circuits | 16 |
| Breaker/Load Center Type | Main Lug |
| Interrupt Rating | 100 kA |
| Cable Size | #4 to 2/0 AWG |
| Wiring Configuration | 3-Wire |
| Bus Bar Material | Aluminum |
| Enclosure Type | NEMA 1 |
| Mounting Type | Surface |
| Color | Gray |
