Whitinsville
SKU: 6869473
Brand: Siemens

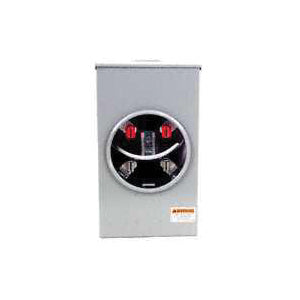

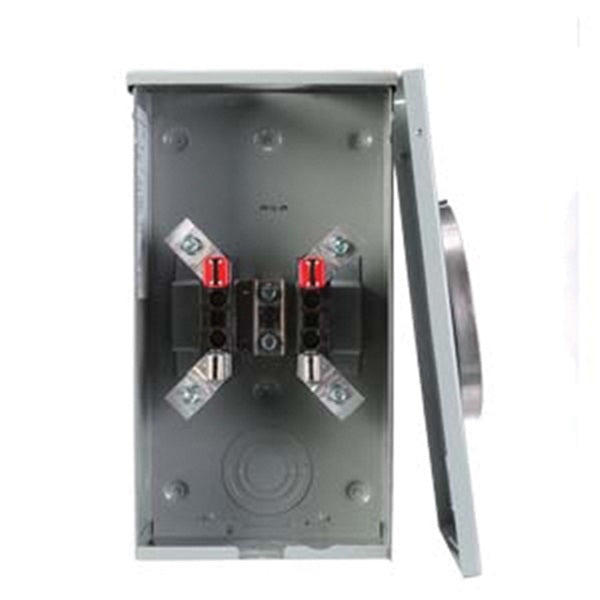

Single-phase, 3-wire, 4-jaw, 600 V maximum. Jaws fabricated from high conductivity, tin-plated, copper alloy. Insulating jaw support blocks of high impact, non-tracking thermoset polyester. Galvanized steel enclosure. Safety guides reduce chances of accidental contact and aligns meter in sock. Uses RX style hub (not included). Provision for 5th jaw, no bypass. UL listed.
Product Details
Manufacturer: SIEMENS
Manufacturer's Part Number: SS102AX
Show me more Meter Sockets
| Cable Entry | Overhead |
| Current Rating | 200 A |
| Dimensions | 5.8 in H x 8.7 in W x 16.9 in D |
| Enclosure Type | NEMA 3R |
| Interrupt Rating | 10 kA |
| Material | Steel |
| Mounting Type | Surface |
| Number of Jaws | 4 |
| Number of Phases | 1 |
| Voltage Rating | 300 V |
| Wire Size | 6 AWG to 350 kcmil |
| Specification Sheet | Click here to download |
