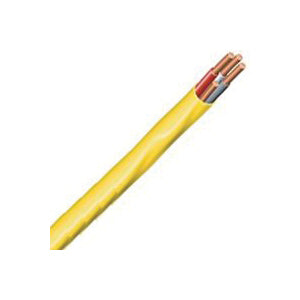

Southwire 12/3NM-WGX250 Sheathed Cable, 12 AWG Wire, 3 -Conductor, 250 ft L, Copper Conductor, PVC Insulation

Name: Southwire 12/3NM-WGX250 Sheathed Cable, 12 AWG Wire, 3 -Conductor, 250 ft L, Copper Conductor, PVC Insulation
Brand: Southwire
SKU: 8154072
Price: 199.99 USD
Availability: InStock

SKU: 8154072

Brand: Southwire

$199.99

Pickup available at North Grafton

Usually ready in 24 hours

Inner conductors are type THHN, rated 90 deg C, 600 V. Solid strands. Outer jacket is PVC, rated at 75 deg C. Amp rating of the product is limited to that for 60 deg C rated conductors per the National Electric Code Article 336. Dwellings not exceeding 3 floors above grade. Exposed or concealed wiring. May be fished through walls, ceilings and masonry blocks. Use for new wiring or replacement wiring. Only for use in normally dry locations. UL listed.

Product Details

Manufacturer: SOUTHWIRE

Manufacturer's Part Number: 12/3NM-WGX250

Show me more Building Wire

Color-coded jacket

SIMpull jacket designed for easier pulling

Conductor Insulation	PVC
Conductor Material	Copper
Current Rating	20 A
Length	250 ft
Number of Conductors	3
Operating Temperature	90 deg C
Sheath Color	Yellow
Sheath Material	Nylon
Strands per Conductor	1
Type	NM-B
Voltage Rating	600 V
Wire Size	12 AWG
