Whitinsville
SKU: 6869366
Brand: Southwire

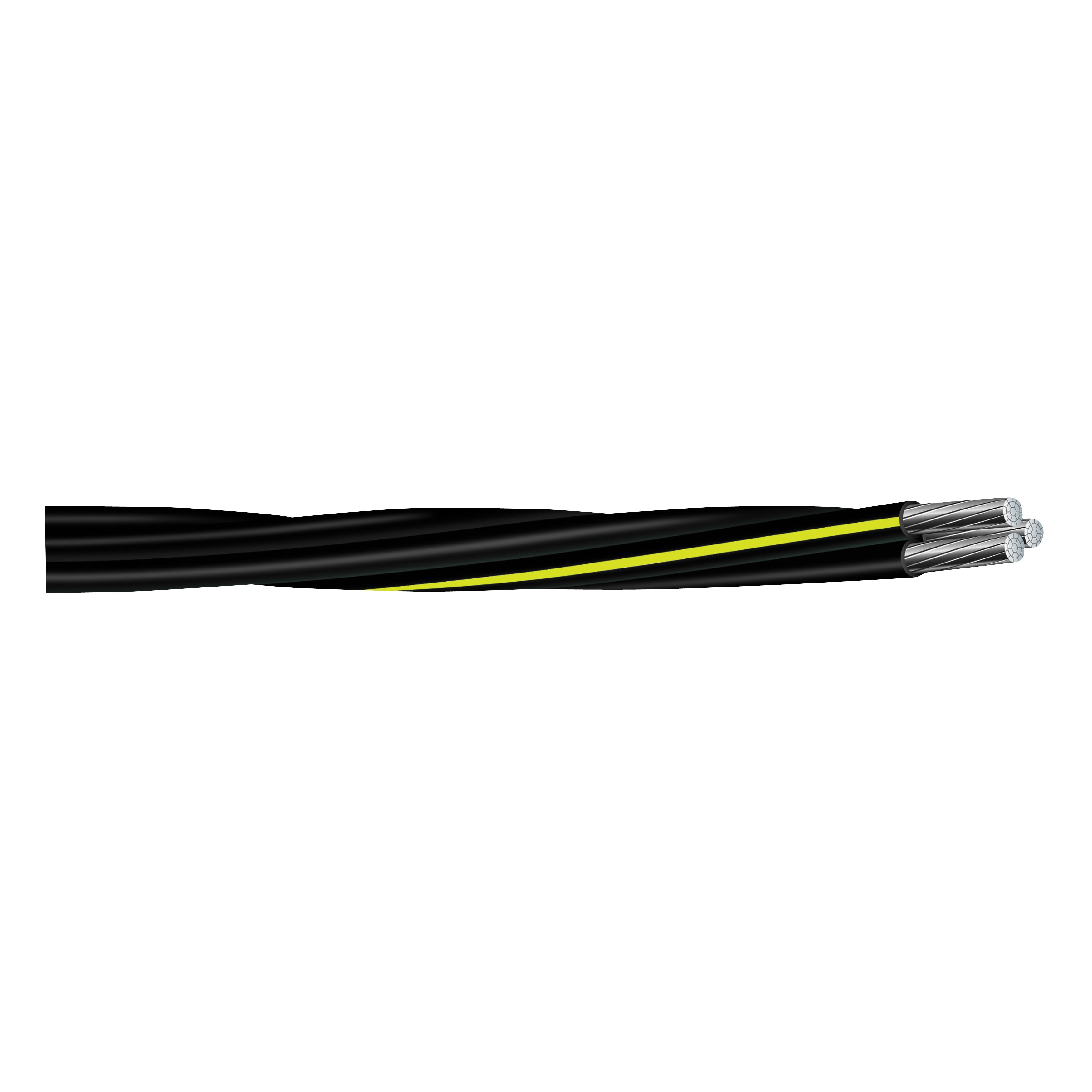

Consists of two cross-linked polyethylene insulated phase conductors triplexed with a yellow-striped, cross-linked polyethylene insulated neutral. High quality heat and moisture-resistant cross-linked polyethylene is rated 75 deg C for wet and 90 deg C for dry locations. 120 A maximum in duct or 165 A in direct earth burial applications with a maximum conductor temperature of 90 deg C, 600 V. 2 - 2 - 4 URD x 500 ft spool. UL listed.
Product Details
Manufacturer: SOUTHWIRE
Manufacturer's Part Number: 538-4800J
Show me more Building Wire
| Conductor Insulation | Polyethylene |
| Conductor Material | Aluminum |
| Current Rating | 165 A Direct Burial, 120 A In Ducts |
| Length | 500 ft |
| Number of Conductors | 3 |
| Operating Temperature | 90 deg C |
| Sheath Color | Yellow |
| Sheath Diameter | 870 mil |
| Strands per Conductor | 7 Phase, 7 Neutral |
| Type | Stephens, Underground |
| Voltage Rating | 600 V |
| Wire Size | #2 AWG |
| Specification Sheet | Click here to download |
