SKU: 7175482
Brand: STANLEY-NATIONAL HARDWARE

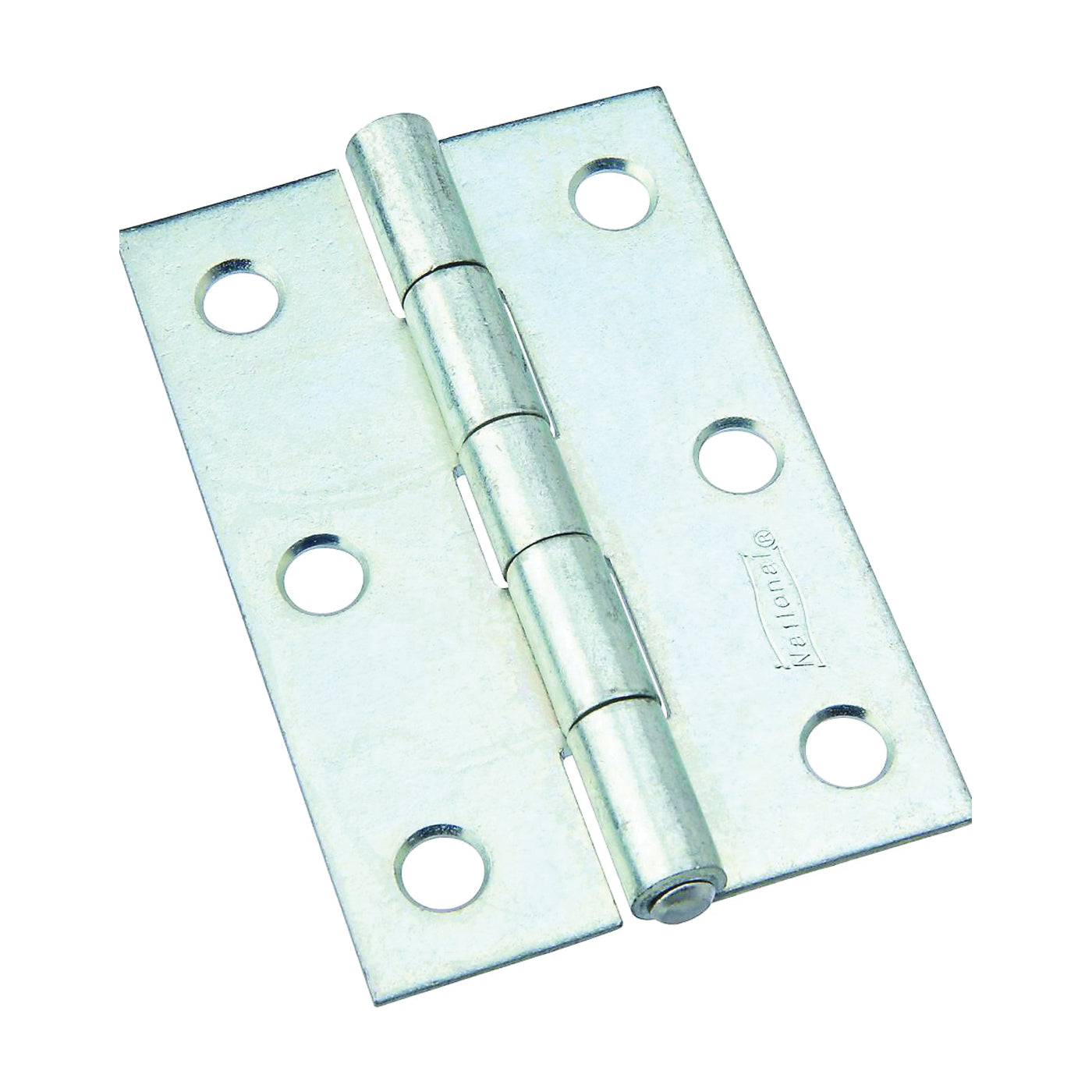

518. Swaged for mortise installations. Manufactured from cold-rolled steel, with non-removable steel pin. Tight pin to allow for left or right hand applications. Boxed loose.
Product Details
Manufacturer: STANLEY-NATIONAL HARDWARE
Manufacturer's Part Number: N146-365
Show me more Utility Hinges
| Weight Capacity | 28 lb |
| Door Leaf Width | 3 in |
| Door Leaf Thickness | 0.065 in |
| Frame Leaf Width | 3 in |
| Frame Leaf Thickness | 0.065 in |
| Number of Knuckles | 5 |
| Pin Type | Tight, Non-Removable |
| Pin Diameter | 0.106 in |
| Orientation Type | Left, Right |
| Mounting Type | Mortise |
| Number of Mounting Holes | 6 |
| Mounting Hole Diameter | 0.23 in |
| Hole Spacing | 1.188 in |
| Material | Aluminum/Cold Rolled Steel |
| Finish | Zinc |
| Dimensions | 2 in L x 3 in W |
| Instruction/Installation Manual | Click here to download |
| Catalog | Click here to download |
| Line Drawing | Click here to download |
