Whitinsville
SKU: 7188493
Brand: STANLEY-NATIONAL HARDWARE

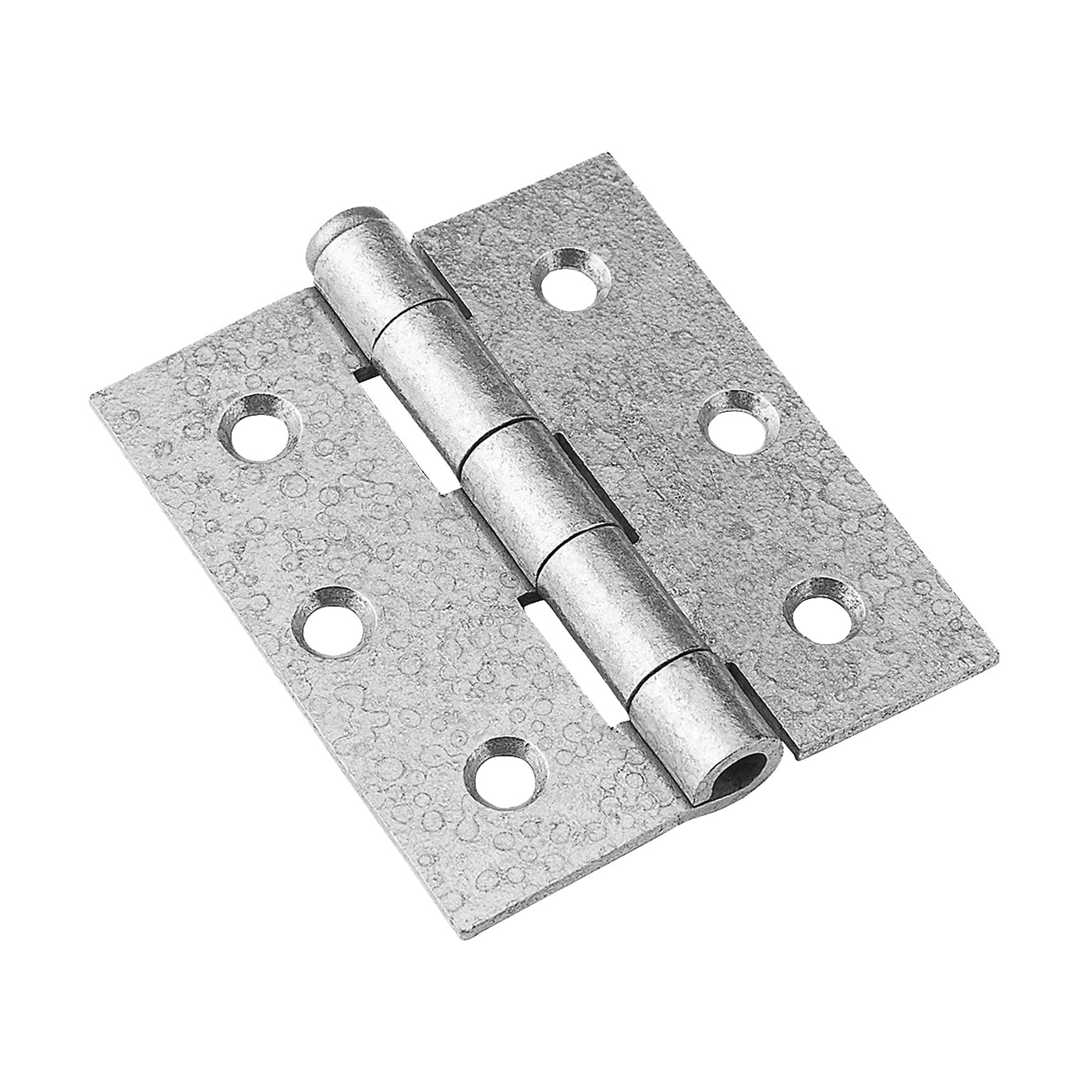

Swaged for mortise installations. Manufactured with cold rolled steel. Five knuckle, full mortise design. Loose brass pin allows doors to be removed without removing hinge.
Product Details
Manufacturer: STANLEY-NATIONAL HARDWARE
Manufacturer's Part Number: N208-850
Show me more Utility Hinges
| Weight Capacity | 45 lb |
| Door Leaf Width | 3 in |
| Door Leaf Thickness | 0.08 in |
| Frame Leaf Width | 3 in |
| Frame Leaf Thickness | 0.08 in |
| Number of Knuckles | 5 |
| Pin Type | Removable, Loose |
| Pin Diameter | 0.24 in |
| Mounting Type | Full Mortise |
| Number of Mounting Holes | 6 |
| Mounting Hole Diameter | 0.24 in |
| Hole Spacing | 0.97 in |
| Material | Cold Rolled Steel |
| Finish | Galvanized |
| Dimensions | 2.57 in L x 3 in W |
| Instruction/Installation Manual | Click here to download |
| Line Drawing | Click here to download |
| Catalog | Click here to download |
