    Home / Circuit Breakers & Panel Boxes / Square D QO QO24L70SCP Load Center, 70 A, 2 -Space, 4 -Circuit, Main Lug, NEMA 1 Enclosure, Plug Mounting, Gray

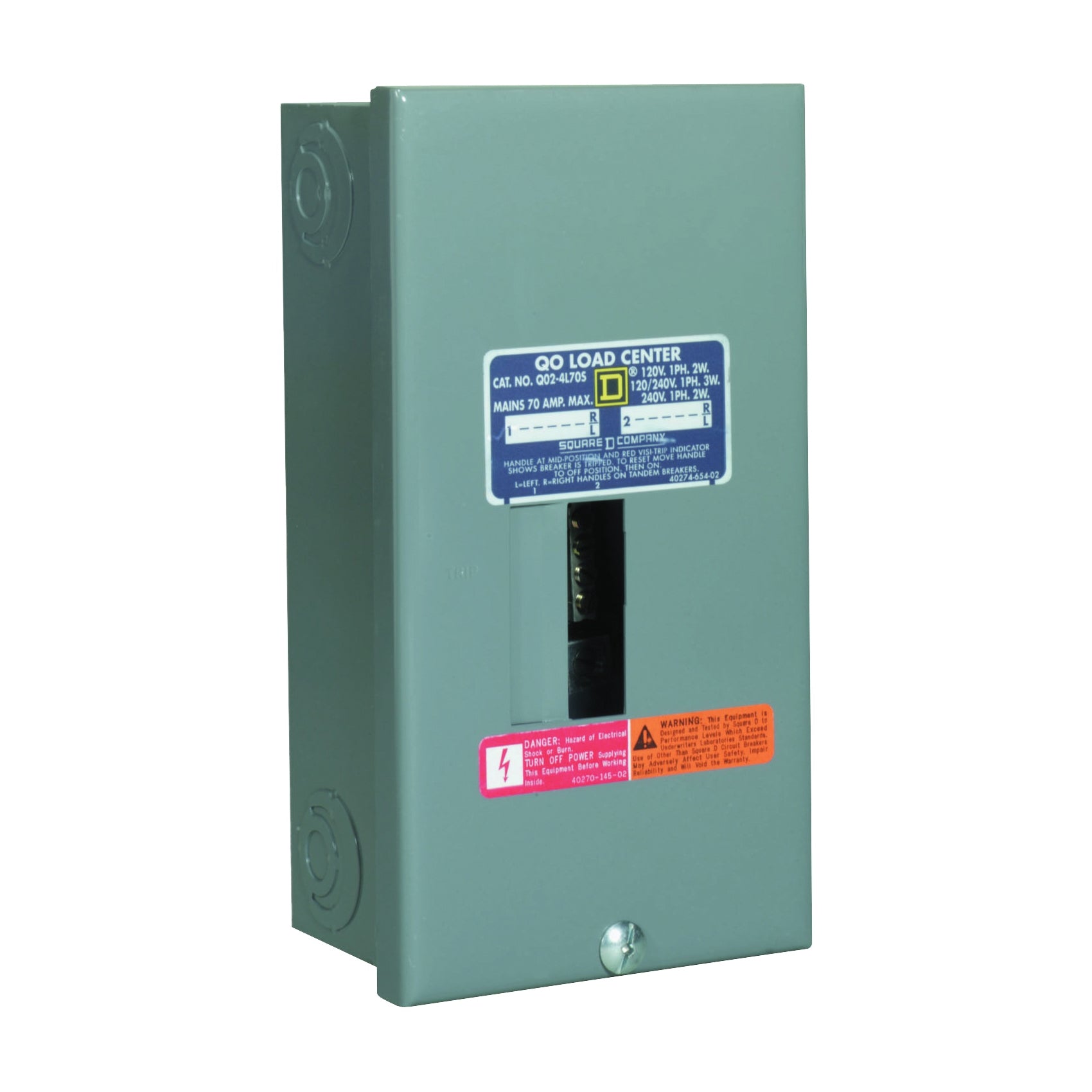

    Square D QO QO24L70SCP Load Center, 70 A, 2 -Space, 4 -Circuit, Main Lug, NEMA 1 Enclosure, Plug Mounting, Gray

    Square D QO QO24L70SCP Load Center, 70 A, 2 -Space, 4 -Circuit, Main Lug, NEMA 1 Enclosure, Plug Mounting, Gray

    SKU: 6475966

    Brand: Square D

    $37.99$0.00
    8 items left


    Main lug load center, intended for fixed applications. 70 A, 2 space/4 circuits. Surface mount cover with door and a NEMA type 1 enclosure for indoor use. Single phase unit, features a copper bus for conductivity and is rated for up to 10,000 SCCR. ANSI certified and UL listed.

    Product Details

    Manufacturer: SCHNEIDER ELECTRIC

    Manufacturer's Part Number: QO24L70SCP

    Show me more Main Lug Load Centers

    • Indoor and outdoor versions
    • Separate flush or surface mount covers
    • QO three-phase main circuit breaker panels can be field upgraded to provide 100 kA short circuit current ratings
    • Split branch neutral with up to 50% more terminations than UL requirement - simplifies wiring and reduces clutter
    • Convertible mains allow fast field conversion between main breaker and main lugs to meet changing job requirements
    • Indoor enclosures designed to rotate 180 deg to accommodate top or bottom service entrance feed, saving expensive service cable
    • Straight-in mains wiring and uniform termination lugs help minimize service cable bends, cutting waste and saving installation time
    • Combination slot/square-drive neutral, ground and cover screw accommodate both standard flat blade screwdrivers and square-head drivers
    • Single, captive interior mounting screw can't be lost. Interior mounts quickly and can easily be removed during rough-in for paint or theft protection
    • Exclusive shielded copper bus features electro tin plated copper bus bars sandwiched between two rugged polymer shields to insulate and secure the interior
    Breaker/Load Center Type Main Lug
    Bus Bar Material Aluminum
    Cable Size #12 to 3, #14 to 4 AWG
    Color Gray
    Cover/Lid Type Surface
    Current Rating 70 A
    Enclosure Type NEMA 1
    Finish Baked Enamel
    Interrupt Rating 65 kA
    Mounting Type Plug
    Number of Circuits 4
    Number of Phases 1
    Number of Spaces 2
    Voltage Rating 120/240 V
    Wiring Configuration 3-Wire
    Catalog Click here to download
    Specification Sheet Click here to download
    Instruction/Installation Manual Click here to download
