SKU: 6475958
Brand: Schneider Electric

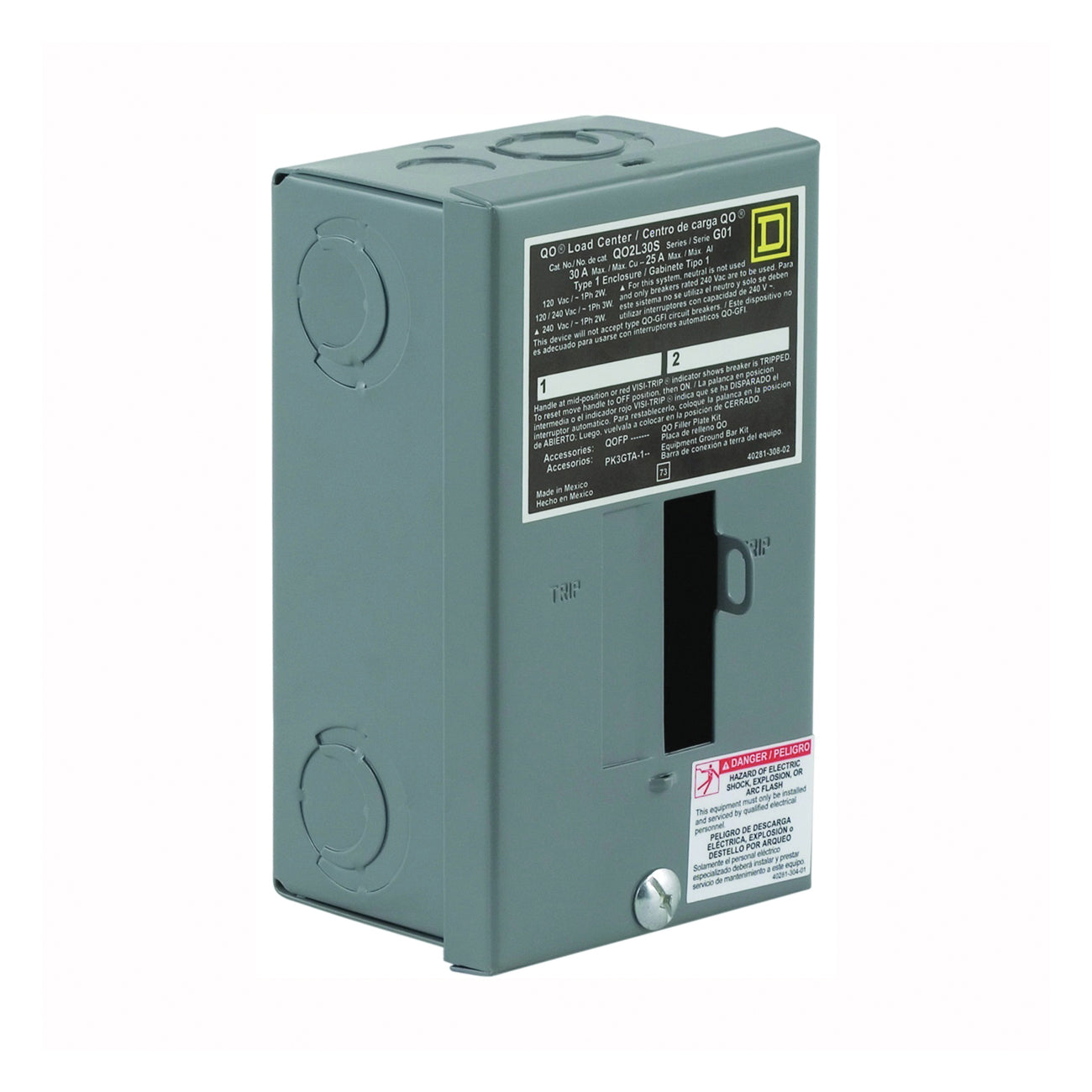

Main lug load center, indoor, 30 A, 2 space/2 circuits. Accommodates both overhead and underground feed applications. 1 in maximum knockout on the top and bottom of the enclosure. Comes with a doorless surface mount cover and factory installed main lugs. UL listed.
Product Details
Manufacturer: Schneider Electric
Manufacturer's Part Number: QO2L30SCP
Show me more Main Lug Load Centers
| Voltage Rating | 120/240 V |
| Current Rating | 30 A |
| Number of Phases | 1 |
| Number of Spaces | 2 |
| Number of Circuits | 2 |
| Breaker/Load Center Type | Main Lug |
| Interrupt Rating | 10 kA |
| Cable Size | #12 to 10, #16 to 10 AWG |
| Wiring Configuration | 3-Wire |
| Bus Bar Material | Aluminum |
| Cover/Lid Type | Surface |
| Enclosure Type | NEMA 1 |
| Mounting Type | Plug |
| Finish | Baked Enamel |
| Color | Gray |
| Catalog | Click here to download |
| Specification Sheet | Click here to download |
| Instruction/Installation Manual | Click here to download |
