Whitinsville
SKU: 2491876
Brand: Eaton Wiring Devices

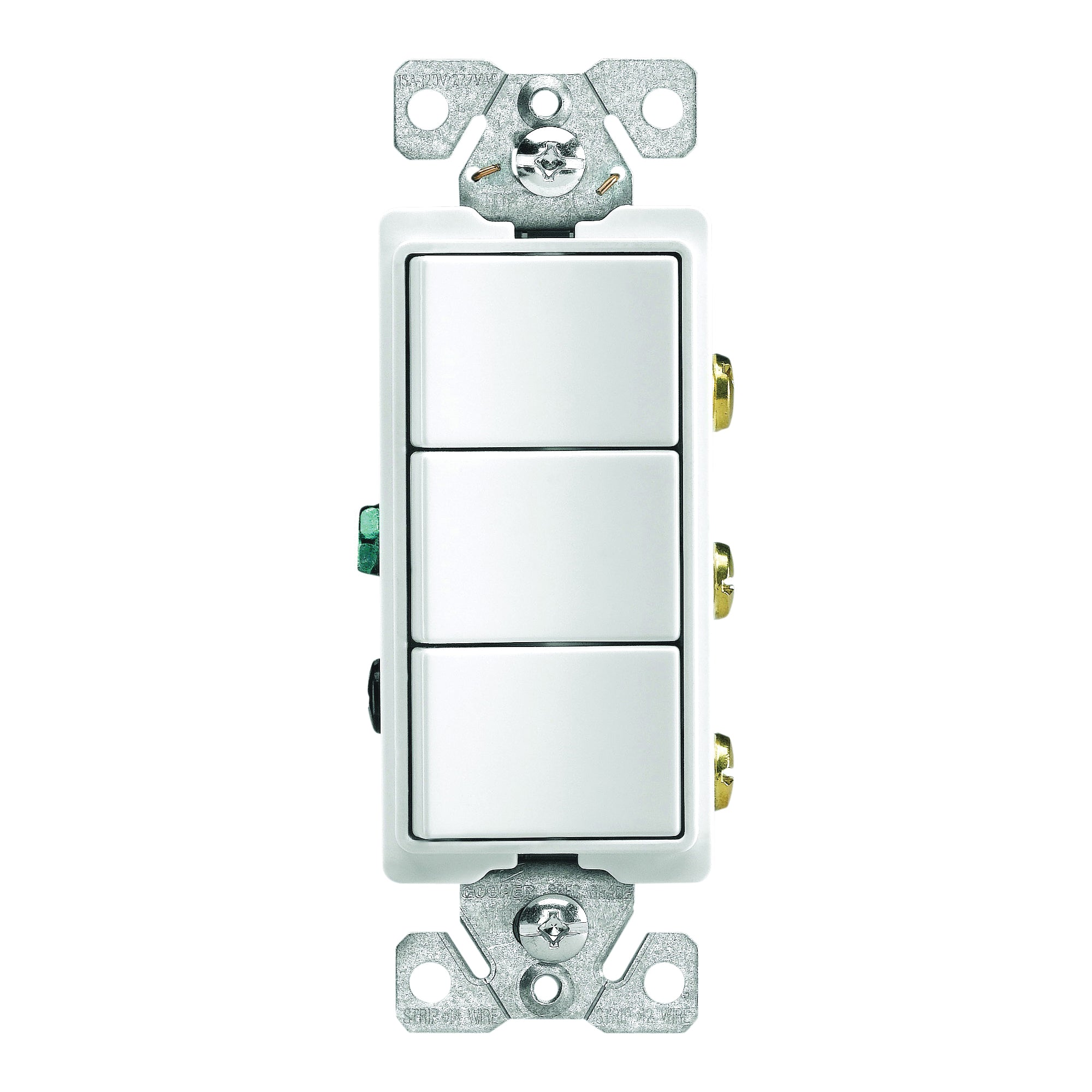

High-impact-resistant thermoplastic rocker, top and back body. Injection molded housings and PVC resin, comply with UL94 V0 flammability ratings. Tri-combo screw heads, built-in wire stripper. Backwire clamps on side terminals for installation of #12 and #14 wire. Terminal screws are backed out for easier and faster wiring. Thick (0.045 in/1.14 mm) steel mounting strap is zinc-plated. Automatic grounding system eliminates the need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where a jumper is used. 120/277 VAC, 15 A rocker switches with break-off provision for wiring devices on the same circuit or on separate circuits. UL, cUL listed and NOM 426 rated.
Product Details
Manufacturer: EATON
Manufacturer's Part Number: 7729W-BOX
Show me more Rocker Switches
| Color | White |
| Contact Configuration | SPST |
| Current Rating | 15 A |
| Dimensions | 4.19 in L x 1.3 in W x 1.08 in D |
| Housing Material | Thermoplastic |
| Mounting Type | Strap |
| Temperature Rating | -20 to 60 deg C |
| Terminal Type | Lead Wire |
| Voltage Rating | 120/277 V |
| Specification Sheet | Click here to download |
| Instruction/Installation Manual | Click here to download |
