Whitinsville
SKU: 8909418
Brand: Forney

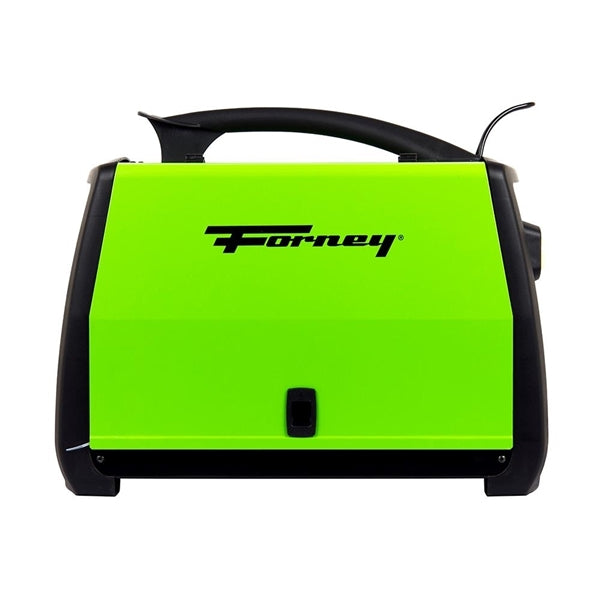

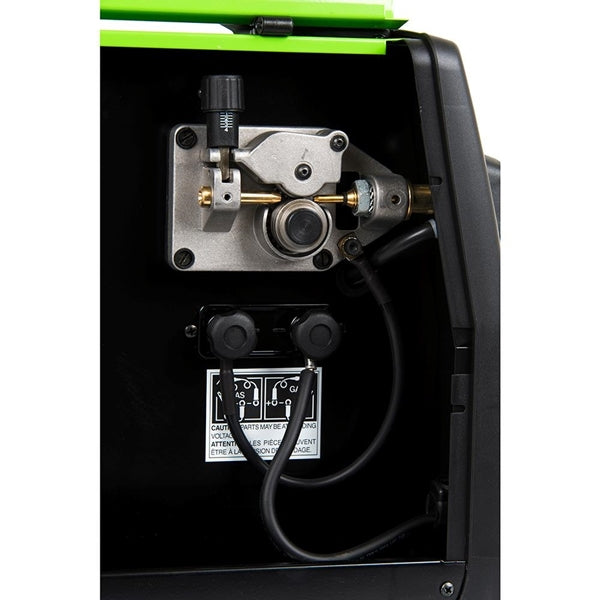

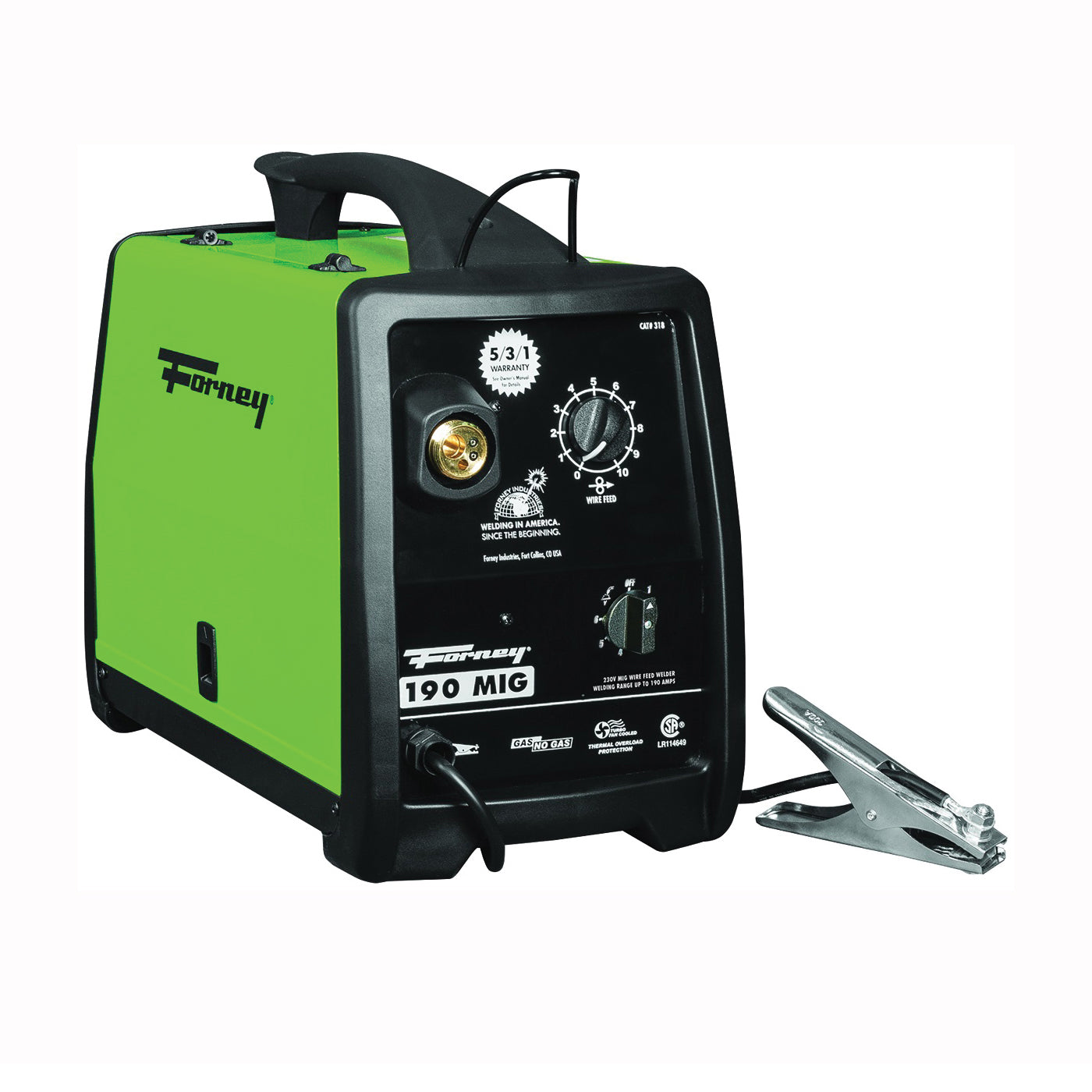

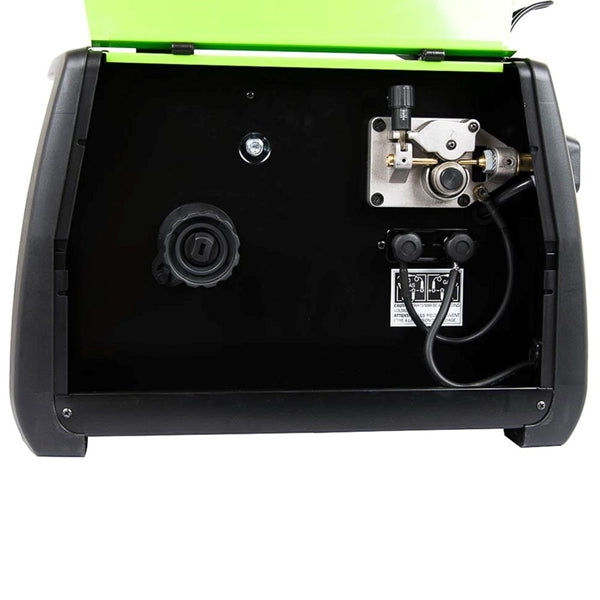

Regulator and gas hose offers a Euro connect torch and fast disconnect to swap out torch and clean liner. Larger cabinet space allows easy access to 4 in (1 to 2 lb) and 8 in (10 to 11 lb) spools. Ideal for farms, automotive and repair welding and permits a 25 ft working envelope with its 10 ft torch and 15 ft power cord. The wire feeding is smooth and consistent as this welder has a cast aluminum wire drive system and dual geared idler and drive roll with de-spooler. The improved design offers integrated feet and torch wrap for cable organization. MIG (GMAW) and flux cored (FCAW) processes. Input power is 230 V. Amperage range is 30 to 190 A, DC CV. Wire diameter range is 0.023 to 0.035 in. Rated output is 120 A at 25% duty cycle. Plate thickness range is 24 ga to 3/8 in. Weighs 63 lb. Dimension of 19 in x 9-1/2 in x 16-1/2 in. Duty Cycle of 140 A, 21 V at 15% and 120 A, 20 V at 25%.
Product Details
Manufacturer: FORNEY INDUSTRIES
Manufacturer's Part Number: 318
Show me more MIG Welders
| Cable Length | 15 ft |
| Color | Green |
| Dimensions | 9-1/2 in L x 19 in W x 16-1/2 in H |
| Duty Cycle | 25 % |
| Frequency Rating | 60 Hz |
| Includes | MIG Gun with 10 ft Lead, 10 ft Ground Cable and Clamp, 15 ft Input Power Cable, Gas Hose and Regulator |
| Input Current Rating | 35 to 190 A |
| Input Voltage | 230 V |
| Number of Phases | 1 |
| Rated Output | 120 A |
| Weight | 63 lb |
| Welded Material | Metal |
| Wire Size | 0.024 to 0.035 in |
| Owners/User Manual | Click here to download |
| Specification Sheet | Click here to download |
