Whitinsville
SKU: 6528145
Brand: Cutler-Hammer

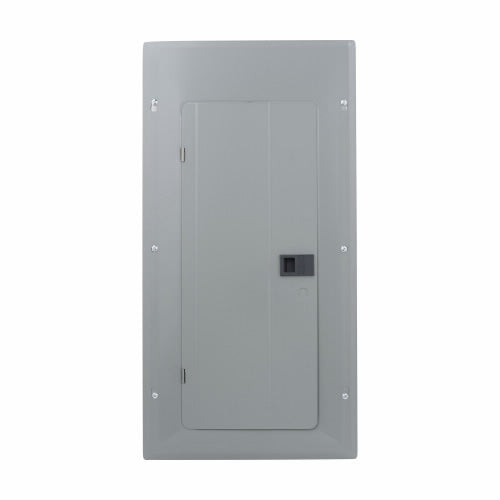

Rainproof galvanized steel enclosure. Single phase, 3-wire, insulated/bondable split neutral, 20 (1 in) spaces, 40 poles, 120/240 VAC. Main breaker type BW at 25,000 AIC. Furnished with hub closure plates, hubs and ground bar kit (necessary for sub-feeding) sold separately. Tin-plated aluminum bus bar. Twin neutral with non-removable cross bus connecting them. When bonded, unused neutral connections may be used for equipment ground protectors in service entrance application. #2 - 300 kcmil wire range. Electrostatic powder coat, baked urethane painted. Rotate 180 deg for bottom feed; orientation of main breaker handle consistent with NEC 240-81 requirements because it operates horizontally. 14-5/16 in x 29-1/8 in x 5-3/16 in. UL listed file E52977.
Product Details
Manufacturer: EATON
Manufacturer's Part Number: BR2040B200R
Show me more Main Breaker Load Centers
| Bus Bar Material | Aluminum |
| Cable Size | 2/0 AWG |
| Current Rating | 200 A |
| Enclosure Type | NEMA 3R |
| Includes | Cover |
| Interrupt Rating | 25 kA |
| Number of Phases | 1 |
| Number of Poles | 40 |
| Temperature Rating | 60 to 75 deg C |
| Voltage Rating | 120/240 V |
| Catalog | Click here to download |
| Line Drawing | Click here to download |
| Specification Sheet | Click here to download |
| Instruction/Installation Manual | Click here to download |
