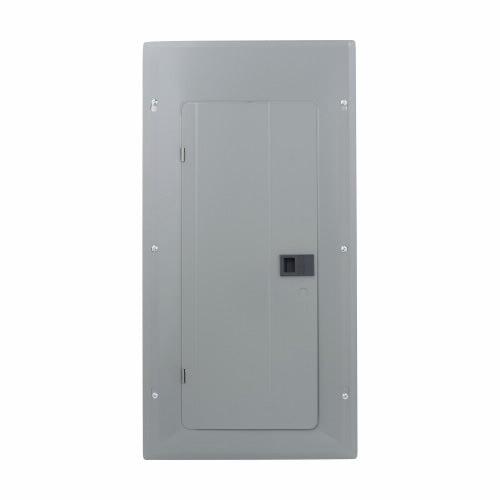

Cutler-Hammer BR2040B200R Load Center, 40 -Pole, 200 A, NEMA 3R Enclosure

Cutler-Hammer BR2040B200R Load Center, 40 -Pole, 200 A, NEMA 3R Enclosure

SKU: 6528145

Brand: Cutler-Hammer

Regular price
Sale price
Regular price
Sold out
Unit price
In stock for FREE pickup in Whitinsville

Rainproof galvanized steel enclosure. Single phase, 3-wire, insulated/bondable split neutral, 20 (1 in) spaces, 40 poles, 120/240 VAC. Main breaker type BW at 25,000 AIC. Furnished with hub closure plates, hubs and ground bar kit (necessary for sub-feeding) sold separately. Tin-plated aluminum bus bar. Twin neutral with non-removable cross bus connecting them. When bonded, unused neutral connections may be used for equipment ground protectors in service entrance application. #2 - 300 kcmil wire range. Electrostatic powder coat, baked urethane painted. Rotate 180 deg for bottom feed; orientation of main breaker handle consistent with NEC 240-81 requirements because it operates horizontally. 14-5/16 in x 29-1/8 in x 5-3/16 in. UL listed file E52977.

Product Details

Manufacturer: EATON

Manufacturer's Part Number: BR2040B200R

Show me more Main Breaker Load Centers

Product Specifications

Bus Bar Material Aluminum
Cable Size 2/0 AWG
Current Rating 200 A
Enclosure Type NEMA 3R
Includes Cover
Interrupt Rating 25 kA
Number of Phases 1
Number of Poles 40
Temperature Rating 60 to 75 deg C
Voltage Rating 120/240 V

Product Documents

Catalog Click here to download
Line Drawing Click here to download
Specification Sheet Click here to download
Instruction/Installation Manual Click here to download
