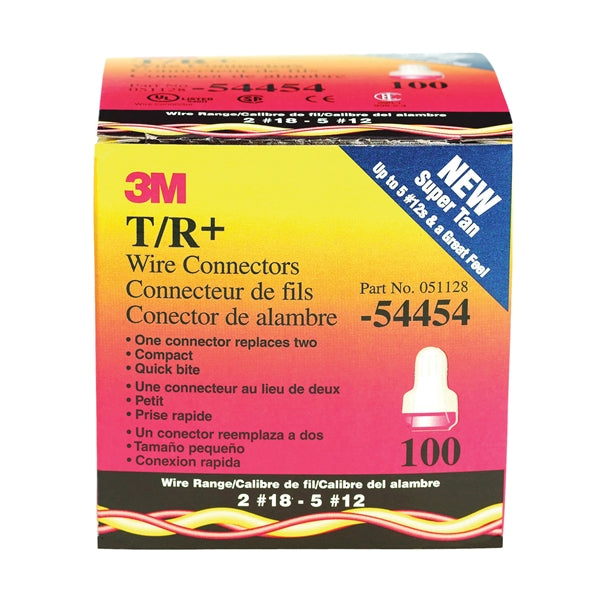

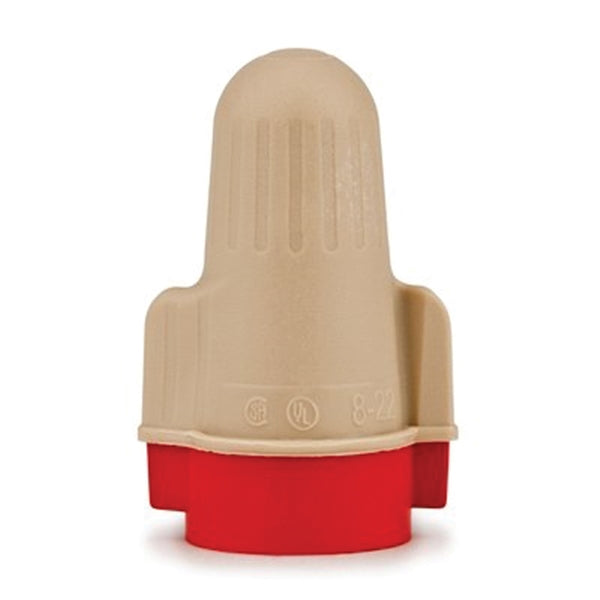

3M Performance Plus T/R+ Wire Connector, 22 to 8 AWG Wire, Steel Contact, Red/Tan
3M Performance Plus T/R+ Wire Connector, 22 to 8 AWG Wire, Steel Contact, Red/Tan
  • Load image into Gallery viewer, 3M Performance Plus T/R+ Wire Connector, 22 to 8 AWG Wire, Steel Contact, Red/Tan
  • Load image into Gallery viewer, 3M Performance Plus T/R+ Wire Connector, 22 to 8 AWG Wire, Steel Contact, Red/Tan

3M Performance Plus T/R+ Wire Connector, 22 to 8 AWG Wire, Steel Contact, Red/Tan

SKU: 5214556

Brand: 3M

Regular price
$29.99
Sale price
$29.99
Regular price
$0.00
Sold out
Unit price
per
In stock for FREE pickup in Whitinsville

Smooth, comfortable feel, with a quick bite active (live) spring. Corrosion-resistant coating design, compact size and red miniskirt. Wire range of 2 number 18 and up to 5 number 12. Replaces the yellow, tan or red connectors in the majority of all field applications. Copper conductors only, No 22 thru No 8 solid and/or stranded. Wing design for a better grip. Voltage rated 600 V maximum building wire and 1000 V maximum signs and lighting fixtures. Maximum operating temperature of 221 deg F. Can be installed with 3M WCD-P wire connector drivers. UL listed and CSA certified as a pressure wire connector. Tan with red skirt.

Product Details

Manufacturer: 3M

Manufacturer's Part Number: T/R+

Show me more Wire Connectors

Product Features

  • Use with copper conductors ranging from 22 to 8 AWG
  • Built with polypropylene and thermoplastic elastomer material
  • Offers a strong bite in a pigtail application for a long-lasting connection
  • Use on building wire rated 600 V and on signs, fixtures or luminaires rated 1000 V
  • Tan/red connector is flame-retardant and handles well in temperatures up to 221 deg F
  • One connector replaces three (yellow, red and tan) in the majority of all field applications
  • The T/R+ is dual color-coded so this one connector replaces your traditional tan and red connectors
  • Ideal for many applications including industrial and residential construction, automotive and appliance applications

Product Specifications

Color Red/Tan
Contact Material Steel
Height 1.17 in
Housing Material Polypropylene/Thermoplastic Elastomer
Mounting Type Screw
Voltage Rating 600 V
Width 0.76 in
Wire Size 22 to 8 AWG

Product Documents

Catalog Click here to download
Specification Sheet Click here to download
