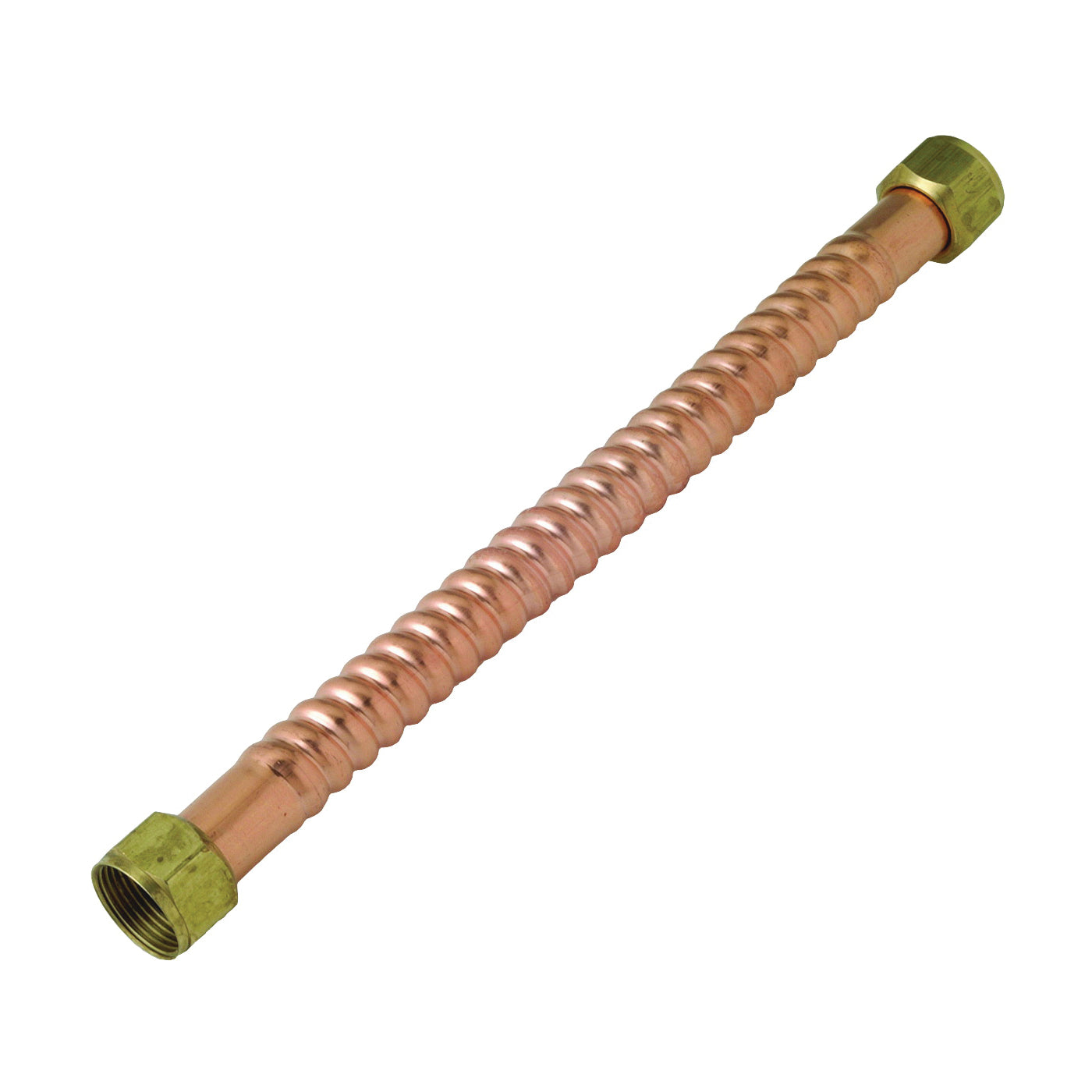

 BrassCraft Copper-Flex Series WB00-18N Water Heater Connector, 3/4 in, FIP, Copper, 18 in L

BrassCraft Copper-Flex Series WB00-18N Water Heater Connector, 3/4 in, FIP, Copper, 18 in L

SKU: 0096404

Brand: BrassCraft

Regular price
$21.99
Sale price
$21.99
Regular price
$0.00
Sold out
Unit price
per
In stock for FREE pickup in Whitinsville

BrassCraft Copper-Flex™ 3/4 in female iron pipe inlet x 3/4 in female iron pipe outlet water heater connectors. Used to connect the water supply to your water heater, this connector features an integrated dielectric sleeve, the sleeve isolates dissimilar metals within the waterway, where galvanic and electrolytic corrosion have their greatest potential. This separation provides complete protection against galvanic corrosion that can deteriorate the connector and cause leaks.

Product Details

Manufacturer: BRASS CRAFT

Manufacturer's Part Number: WB00-18N

Show me more Water Heater Connectors

Product Features

  • No-lead certified
  • Corrugated copper tube
  • Engineered and tested for harsh water conditions
  • Longer connector nuts allow a greater number of thread-to-thread contacts and a better seal
  • Requires less torque to seal with a pliable Nitrile rubber washer, especially on rough nipple surfaces
  • Patented internal dielectric sleeve effectively isolates dissimilar metals within the waterway to prevent galvanic corrosion
  • No dielectric union needed, the integrated dielectric sleeve eliminates the need to install an additional dielectric union, reducing time and installation costs

Product Specifications

Connection Type FIP
Diameter 7/8 in
Length 18 in
Material Copper
Nominal Size 3/4 in
Pressure Rating 125 psi
Suitable for Water Heaters
Temperature Rating 40 to 180 deg F

Product Documents

Catalog Click here to download
Specification Sheet Click here to download
Instruction/Installation Manual Click here to download
